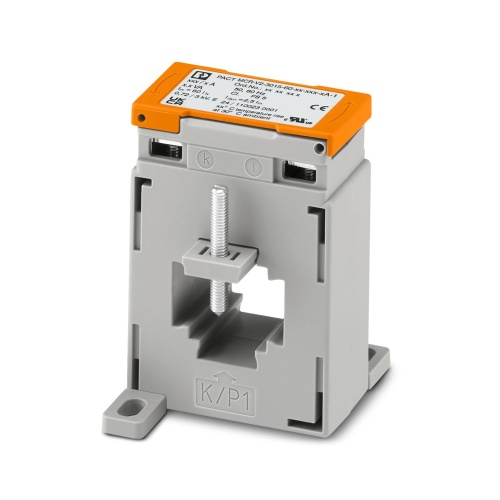

Phoenix Contact 2277815 Current transformer PACT MCR-V2-3015- 60- 60-5A-1
Normally In Stock
Code: 71435
PACT MCR-V2-3015- 60- 60-5A-1 Phoenix 2277815 Current transformer 0 Amp - 60 Amp Plug-on converters Screw connection Monitoring
Condition: New
Usually ships within 7-14 days. Call for ship time.$47.89
Sale Price
$39.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2277815 A window-type current transformer is designed for a 60 ampere AC primary current with a corresponding 5 ampere AC secondary current, featuring an accuracy rating of Class 1 and a maximum rated power output of 1.25 VA.
Specifications
Monitoring Rated Power
1.25 VA
Monitoring Circular Conductor Dimensions
28 mm
Monitoring Connection Method
Screw Connection
Monitoring Type
Plug-On Converters
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transformer
Monitoring Primary Rated Current
0 Amp - 60 Amp
Features
Protection against damage: Short circuit of the transformer by rotation of the captive terminal cover through 90°
Variable mounting with flexible fastening options
Measure peak loads reliably with a thermal nominal continuous current of 120% of the primary rated current
Increased electrical safety with high rated insulation voltagesup to 1,000 V (L-N)
Space-saving design with consistently narrow housing widths of 30 mm
Downloads
Phoenix 2277815 CAD data International.dxfPhoenix 2277815 CAD data International.pdfPhoenix 2277815 CAD data International.stpPhoenix 2277815 E-Learning English.wmvPhoenix 2277815 Manufacturers declaration English.pdfPhoenix 2277815 Manufacturers declaration International.pdfPhoenix 2277815 Package Slip International.pdfPhoenix 2277815 Tender Text English.zip
