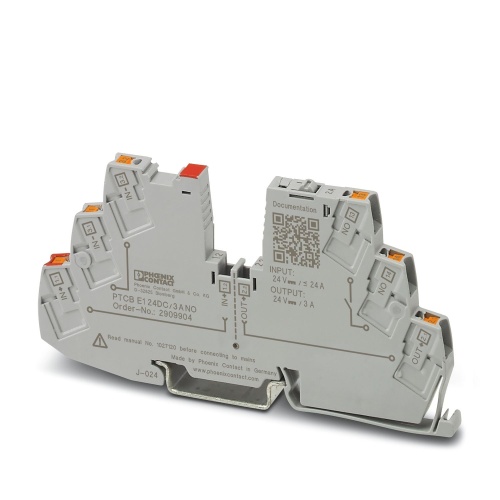

Phoenix Contact 2909904 Electronic circuit breaker PTCB E1 24DC/3A NO
Normally In Stock
Code: 70837
PTCB E1 24DC/3A NO Phoenix 2909904 Device circuit breakers 24 Amp DC 18 VDC - 27.5 VDC DIN rail: 35 mm Protective Devices
Condition: New
Usually ships Same Day or Next Day$35.05
Sale Price
$29.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2909904 A one-channel electronic circuit breaker protects loads at 24V DC from overloads and short circuits, offering easy potential distribution using components from the CLIPLINE complete terminal block system, featuring a fixed nominal current rating suitable for installation on DIN rails.
Specifications
Breaker Mount Type
Din Rail
Breaker Number of Poles
Single Pole
Breaker Voltage Rating
18 VDC - 27.5 VDC
Breaker Amperage Rating
24 Amp
Manufacturer
Phoenix Contact
Component
Electronic Circuit Breaker
Features

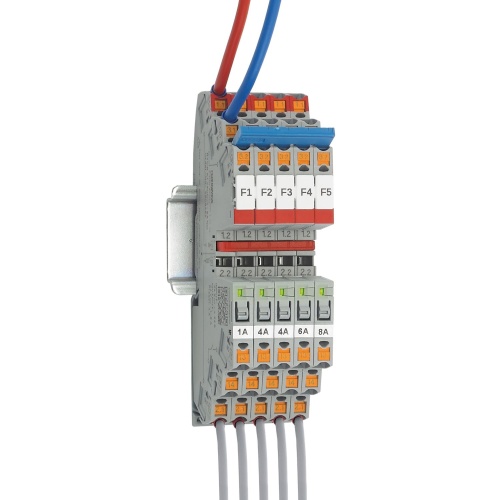

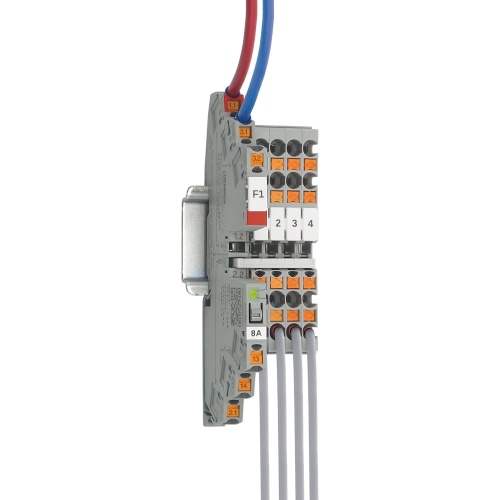

Simple application setup due to bridging option to CLIPLINE complete terminal block system

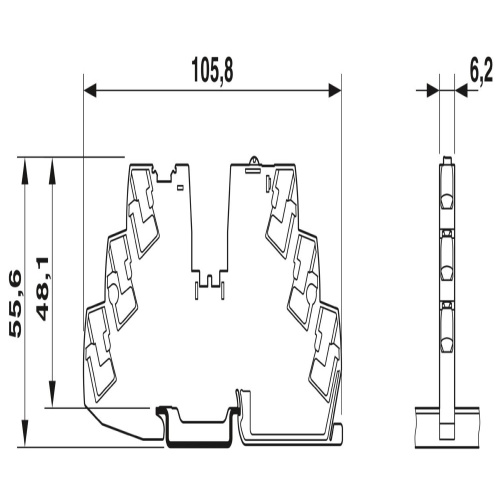

More space in the control cabinet: narrowest protection on just 6 mm width
Individual setup for suitable protection, exactly according to your requirements
Optimum protection for cables and sensors as well as NEC Class 2 circuits by means of an additional internal output fuse
Downloads
Phoenix 2909904 Application Note English.pdfPhoenix 2909904 CAD data International.dxfPhoenix 2909904 CAD data International.pdfPhoenix 2909904 CAD data International.stpPhoenix 2909904 Flyer English-2.pdfPhoenix 2909904 Flyer English.pdfPhoenix 2909904 Manufacturers declaration English.pdfPhoenix 2909904 Manufacturers declaration International.pdfPhoenix 2909904 Package Slip International.pdfPhoenix 2909904 Tender Text English.zipPhoenix 2909904 Various English.pdf
