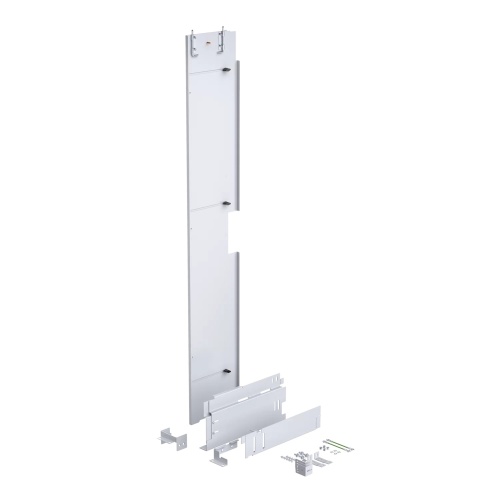

nVent Hoffman A60BP24 Universal Barrier Panel for Free-Stand-Floor-Mount Enclosures
Normally In Stock
Code: 69232
nVent Hoffman A60BP24 Panel Free-Stand Accessories
Condition: New
Usually ships Same Day or Next Day$990.82
Sale Price
$825.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The universal barrier panel provides a Type 1 solution to help reduce the risk of electrical hazards such as electrical shock or arc flash by adding a physical barrier inside an enclosure to separate the high voltage from the low voltage components. Designed to fit in unibody free-stand or floor-mount enclosures with centerpost, the barrier helps minimize the incidental contact or exposure to high voltage components while accessing the low voltage equipment such as controls and programming devices.
Specifications
Panel For Enclosure Width
24"
Panel For Enclosure Height
60"
Panel Composition
Painted Steel
Panel Height
60"
Component
Barrier Panel
Sub Component
Free-Stand Barrier Panel
Panel Width
2.75"
Manufacturer
Hoffman
Features
Ground stud on the main barrier plate
Main barrier plate has a 6-inch extender to add flexibility when mounting
Quick release hinges used to secure the main barrier plate to the top barrier plate to simplify installation
Designed to fit the following bulletins: A21 (excluding CPX enclosures), A28M2, A28MM, A4L3D, A4L3, A4L, A21S4 (excluding CPX enclosures), A28S4, A4S2, A4S3, A4SL
Top and bottom barrier plates included to provide a full-depth separation
Meet UL Type 1 construction requirements when installed in an nVent HOFFMAN enclosure
Mount to the welded or removable centerpost of an enclosure, the barrier panel cannot be installed in free-stand or floor-mount enclosures without a centerpost
Mounting hardware and brackets included
Downloads
Hoffman A60BP24 2D DXF CAD.zipHoffman A60BP24 3D STEP CAD.zipHoffman A60BP24 Barrier Panel Selection Guide.pdfHoffman A60BP24 Declaration of Compliance.pdfHoffman A60BP24 Dimension Drawing.gifHoffman A60BP24 EU Certification.pdfHoffman A60BP24 Installation VideoHoffman A60BP24 Instruction Manual.pdfHoffman A60BP24 Spec Sheet.pdfHoffman A60BP24 UL Certification.pdf
