Phoenix Contact 1078680 Relay module PLC-RSC- 24DC/ 1ICT/ACT
Normally In Stock
Code: 68592
Phoenix 1078680 Electromagnetic Relay 1N/Ocontact 24 VDC Screw connection High Inrush Current,Input Function Relays
Condition: New
Usually ships Same Day or Next Day $30.95
Sale Price
$25.79
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

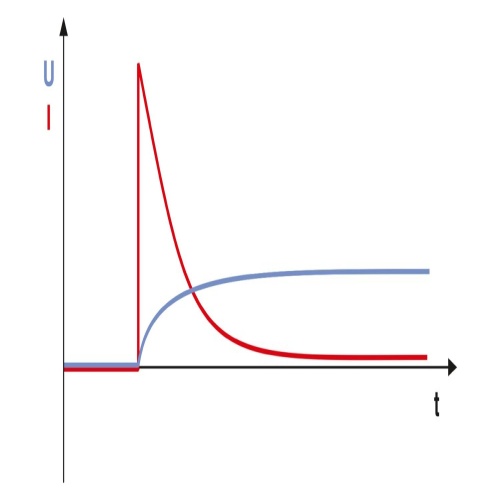

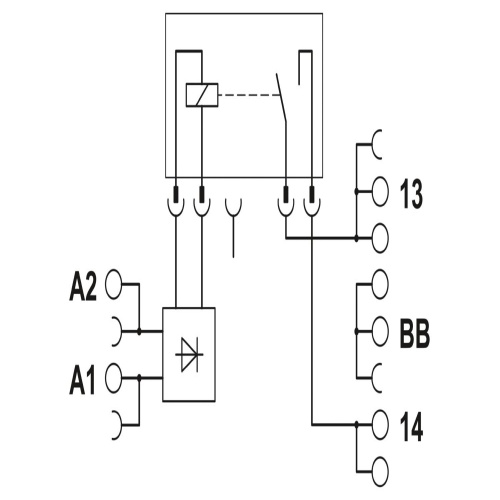

Phoenix Contact 1078680 A PLC-Interface for high inrush currents is offered, featuring a PLC-BSC module/1 IC/ACT basic terminal block with screw connection and pluggable miniature relay that can be mounted on a DIN rail specifically designed for NS 35/7.5. This interface can handle maximum inrush currents of up to 800 A and includes one N/O contact, making it suitable for applications requiring high current handling capabilities at a 24 V DC input voltage.
Specifications
Relay Mounting
Din Rail
Relay Connection Type
Screw Connection
Relay Contact Material
Agsno2
Relay Poles
Single Pole
Component
Relay Module-Electromagnetic
Manufacturer
Phoenix Contact
Relay Throws
Single Throw Normally Open
Relay Input Amperage
18 Mamp
Coil Voltage Rating
12-24 Volt
Relay Load Voltage AC Rating
250 Volt
Relay Load Voltage DC Rating
250 Volt
Relay Application
High Inrush Current Input Function
Features
Max. inrush current of 800 A
Efficient connection to system cabling using V8 adapter
Safe isolation between coil and contact side
Direct connection of load return line thanks to actuator version
Functional plug-in bridges
Downloads
Phoenix 1078680 Application Note English.pdfPhoenix 1078680 CAD data International.dxfPhoenix 1078680 CAD data International.pdfPhoenix 1078680 CAD data International.stpPhoenix 1078680 Manufacturers declaration English.pdfPhoenix 1078680 Manufacturers declaration International.pdfPhoenix 1078680 Package Slip International.pdfPhoenix 1078680 Product Information English.pdfPhoenix 1078680 Tender Text English.zip
