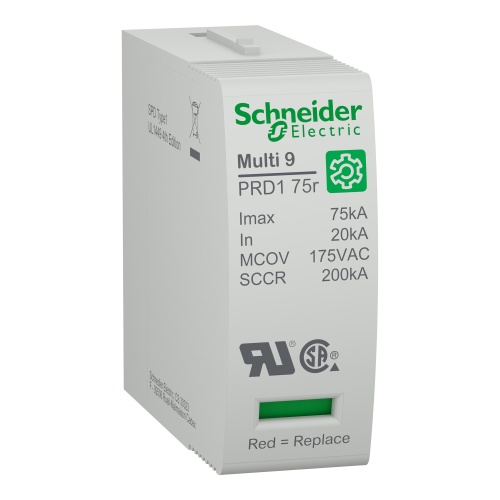

Schneider Electric M9LC175 - surge arrester cartridge, Multi9 PRD1 75r, 1P, 120 V
Normally In Stock
Code: 660249
Schneider Electric M9LC175 - surge arrester cartridge, Multi9 PRD1 75r, 1P, 120 V
Condition: New
Usually ships Same Day or Next Day$68.93
Sale Price
$57.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric M9LC175 - surge arrester cartridge, Multi9 PRD1 75r, 1P, 120 V
Specifications
Manufacturer
Schneider Electric
Component
Surge Arrester Cartridge
Features
This Multi9 product is a cartridge for PRD1 75r surge protection device
The Imax maximum discharge current is 75kA
The In nominal discharge current is 20kA
The Uc maximum continuous operating voltage is 175VAC
The maximum Up voltage protection level is 600V

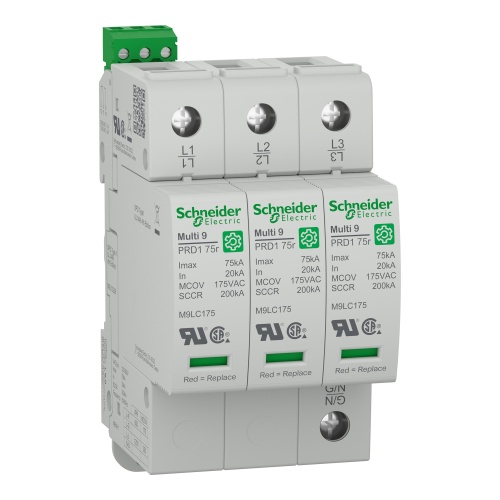

It can be plugged into a surge protecting device module
Its width is 2 pitches of 9mm
The product color is light grey (RAL 7035)
The dimensions are (W) 17.5mm x (H) 45mm x (D) 68.5mm
The degree of protection is NEMA 1
The operating temperature is -25°C to 60°C
The storage temperature is -40°C to 85°C
It is compliant withUL 1449 standard.
