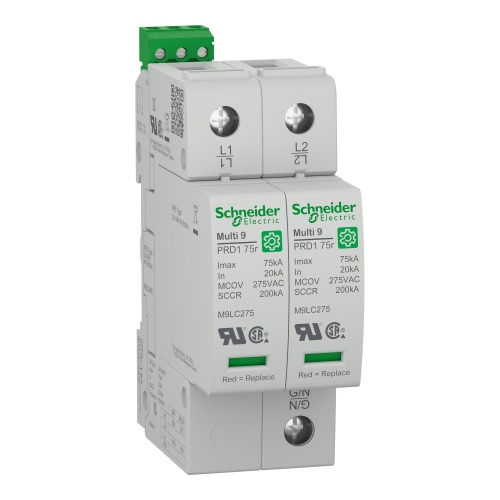

Schneider Electric M9L22480 - surge arrester, Multi9 PRD1 75r, 2P, 240/480 V
Normally In Stock
Code: 660164
Schneider Electric M9L22480 - surge arrester, Multi9 PRD1 75r, 2P, 240/480 V
Condition: New
Usually ships Same Day or Next Day$187.38
Sale Price
$156.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric M9L22480 - surge arrester, Multi9 PRD1 75r, 2P, 240/480 V
Specifications
Manufacturer
Schneider Electric
Component
Surge Arrester
Features
This Multi9 PRD1 product is a surge arrester
it can be installed in a variety of installations including service entrance, branch panels and control panel environments
It is connected to electrical distribution network
Its surge arrester class type is type 1
The Imax maximum discharge current is 75kA
It can be associated with a 30A and C curve tripping circuit breaker
The Uc maximum continuous operating voltage is 275VAC in common mode (L/N)
The In nominal discharge current is 20kA (L/PE)
The Up maximum voltage protection level is 900V (L/N) and 1800V (L/L)
It can be mounted on DIN rail for modular installation
Its width is 4 pitches of 9mm
The degree of protection is NEMA 1
The operating temperature is -25°C to 60°C
The storage temperature is -40°C to 85°C
This product complies with UL 1449 standard.
