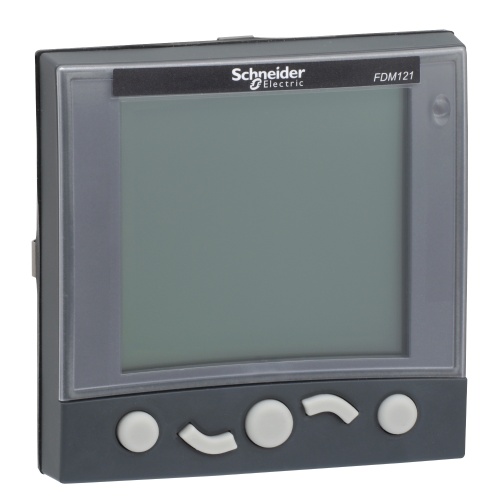

Schneider Electric TRV00121 - Ethernet switchboard display FDM 121, 1 connected device, screen 96mm x 96mm, IP54 on front face
Normally In Stock
Code: 658470
Schneider Electric TRV00121 - Ethernet switchboard display FDM 121, 1 connected device, screen 96mm x 96mm, IP54 on front face
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1566.48
Sale Price
$1305.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric TRV00121 - Ethernet switchboard display FDM 121, 1 connected device, screen 96mm x 96mm, IP54 on front face
Specifications
Manufacturer
Schneider Electric
Component
Ethernet Switchboard Display
Features
This FDM121 is an Ethernet switchboard display module and it is part of EnerlinX communication system
This display unit is compatible with Masterpact, Compact and PowerPact circuit breakers
FDM121 displays the measurements, alarms, and operating assistance data from one circuit breaker over ULP
Its LCD screen offers a high resolution with white backlighting
The FDM121 is equipped with a 24VDC terminal block and two RJ45 sockets for ULP connection
It is easily installed in a switchboard, either through a standard door cut-out (92x92mm) or two 22mm diameter holes
It is a 96 x 96 x 30 mm screen requiring 10 mm behind the door (or 20 mm when the 24 V power supply connector is used),The operating temperature range is between -10°C to 55°C, and the protection degree is IP54 on the front face
The FDM121 display module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels
The FDM121 firmware can be updated using EcoStruxure Power Commission software.
