Schneider Electric HOM3060L225PGC Load Center - 225 Amp, 120/240 VAC, 60 Spaces, NEMA 1
Normally In Stock
Code: 651978

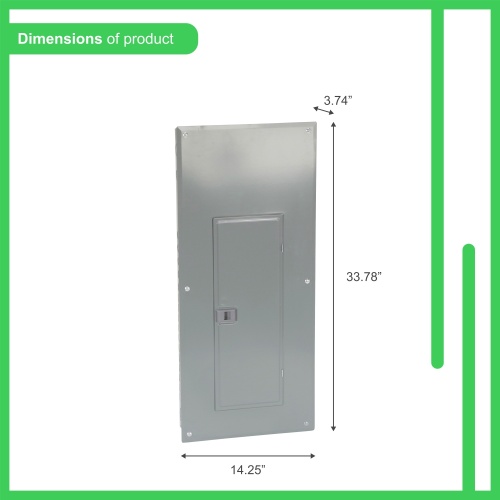

Schneider Electric HOM3060L225PGC - Single Phase 3 Wires, 225 Amp, 10 kA, 120/240 VAC, 60 Spaces - 33.8" x 14.3" x 3.7" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$236.68
Sale Price
$197.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

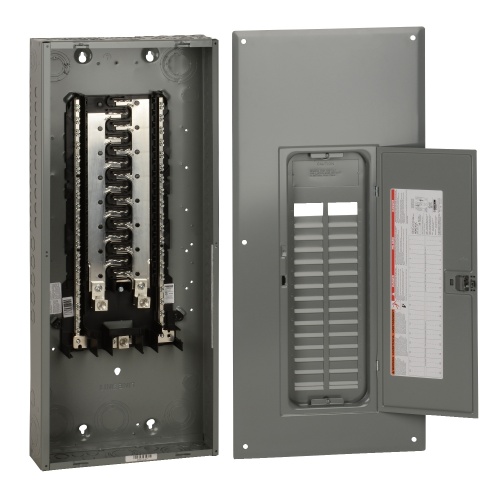

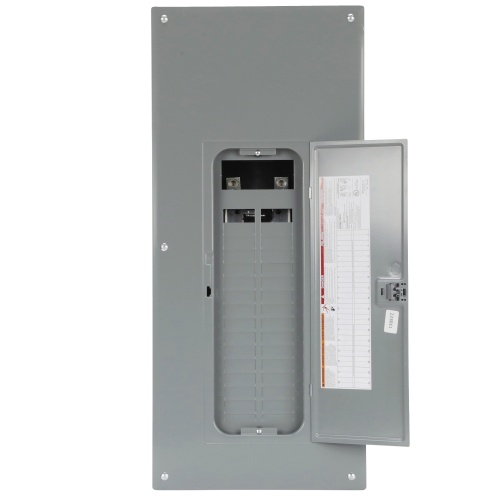

Schneider Electric HOM3060L225PGC - Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 225A convertible main lugs, PoN, NEMA1, gnd bar, combo cover
Specifications
Manufacturer
Schneider Electric
Interrupt Rating
10 Ka
Component
Load Center
Phase
Single Phase In
Phase
Single Phase Out
Amperage
225 Amp
Maximum Voltage
120/240 VAC
Features
Fast installation, reliability, and superior circuit protection
Protects against equipment overloads and short-circuits
Tin and copper plated aluminum bus bars
