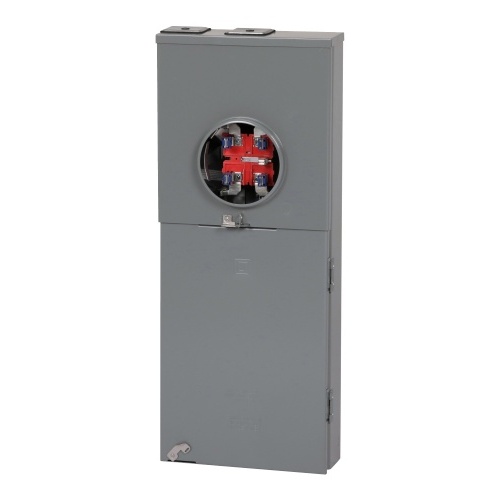

Schneider Electric QC816F200CH Meter Mains - 200 Amp, 8 Spaces
Normally In Stock
Code: 651857
Schneider Electric QC816F200CH - 200 Amp, 8 Spaces - 36.6" x 15" x 5.8" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$1558.87
Sale Price
$1299.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric QC816F200CH - Meter mains, QO, CSED, ringless socket, 200A, surface mount, maximum 8 spaces, 16 circuits, horn bypass
Specifications
Manufacturer
Schneider Electric
Phase
Single Phase
Component
Meter Mains
Number of Jaws
5
Number of Meter Sockets
4
Amperage
200 Amp
Features
Square D meter mains devices are single phase power distribution panels ideal for residential use for when the local codes require the service disconnect to be located outside the dwelling
These devices come with a meter socket that supports a standard utility meter and a main disconnect breaker and include provisions for field installation of service disconnect(s) to feed downstream devices
Square D meter mains products are single compact solution provides a time and space saving solution for contractors and installers as well as meet a wide range of applications in use today
This meter main is designed for QO range, has 8 spaces, is rated at 200A and has a short circuit current rating of 22 kA
This device has a horn bypass type, uses a ringless meter socket type and can be service feed either overhead or underground
This CSED uses lugs on the line side and feed thru lugs service ground side of the device, has a wire range of 6 AWG to 350 kcmil on the line side and 12 AWG to 2/0 AWG on the service ground side
The dimensions for this product are 35.15 in (H) x 14.37 in (W) x 5.07 in (D).
