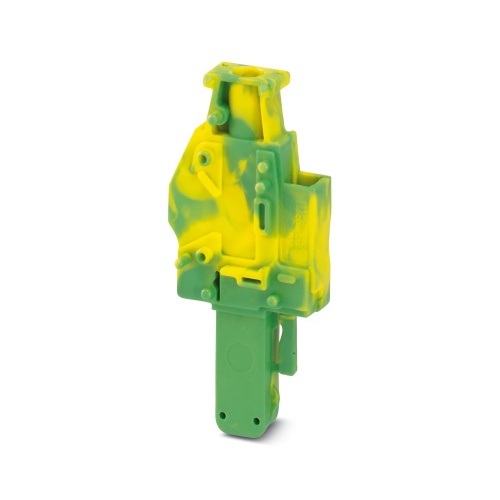

Phoenix Contact 3045790 Plug UPBV 4/ 1-R GNYE
Normally In Stock
Code: 63930
Phoenix 3045790 Terminal Plug Screw connection 800 V 32 Amp green-yellow Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.41
Sale Price
$2.01
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3045790 The plug has a rating of 800V and is designed to handle up to 32A of current, with one connection point secured by a screw mechanism. The rated cross-sectional area is 4mm², although it can accommodate a range of cross-sections from 0.14mm² to 6mm². The plug's color is green-yellow.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
6.2 mm
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Amperage
32 Amp
Terminal Block Component Color
Green/Yellow
Jumper Pitch
6.2 mm
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
The screw plugs can be combined with COMBI terminal blocks with all forms of connection technology and are available in two versions
The COMBI plugs for self-assembly provide solutions that users can implement themselves
Can be bridged with FBS ... standard bridges
The plugs are assembled directly on site by snapping together 1-position plug elements
The connected conductors can be led directly into the cable duct to save space
Downloads
Phoenix 3045790 CAD data International.dxfPhoenix 3045790 CAD data International.pdfPhoenix 3045790 CAD data International.stpPhoenix 3045790 Manufacturers declaration English.pdfPhoenix 3045790 Manufacturers declaration International.pdfPhoenix 3045790 Safety note English.pdfPhoenix 3045790 Tender Text English.zip
