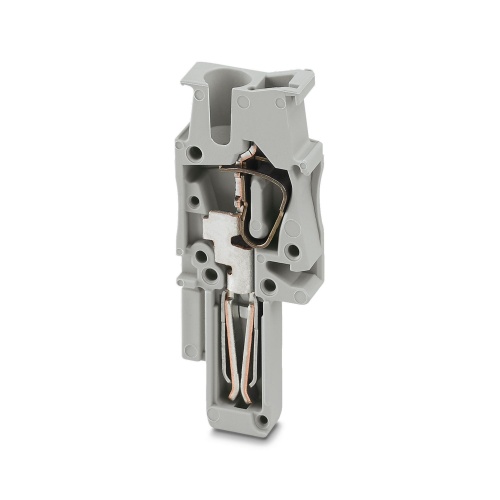

Phoenix Contact 3043043 Plug SP 2,5/ 1-M
Normally In Stock
Code: 63816
Phoenix 3043043 Terminal Plug Spring-cage connection 500 V 24 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.05
Sale Price
$1.71
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3043043 This electrical connector features a spring-cage connection method and is rated for 500 volts of voltage and 24 amps of current. The number of positions available is one, while the diameter of the connector varies between 0.08mm² to 4mm², with a nominal cross-sectional area of 2.5mm². The overall size of the connector can vary but it's made from a gray-colored material.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
5.2 mm
Terminal Block Component Color
Gray
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Jumper Pitch
5.2 mm
Terminal Block Amperage
24 Amp
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Cable housing can be snapped on to the plugs, see figure below
The plug with spring-cage connection is assembled directly on site by snapping together single-position plug elements
The ST-COMBI plugs for self-assembly provide solutions that users can implement themselves
Downloads
Phoenix 3043043 CAD data International.dxfPhoenix 3043043 CAD data International.pdfPhoenix 3043043 CAD data International.stpPhoenix 3043043 Data Sheet English-2.pdfPhoenix 3043043 Data Sheet English.pdfPhoenix 3043043 Manufacturers declaration International-2.pdfPhoenix 3043043 Manufacturers declaration International.pdfPhoenix 3043043 Safety note English.pdfPhoenix 3043043 Tender Text English.zip
