Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 63807

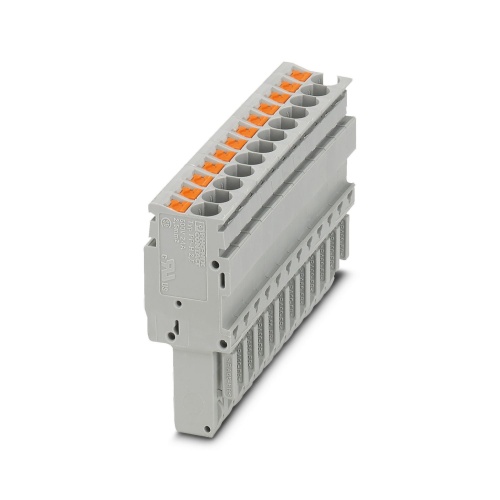

Phoenix Contact 3209976 Plug PP-H 2,5/12
Normally In Stock
PP-H 2,5/12 Phoenix 3209976 Terminal Plug Push-in connection 500 V 24 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$15.07
Sale Price
$12.56
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3209976 The product has a nominal voltage of 500 V and a maximum current draw of 24 A through its push-in connections, which accommodate 12 separate connections, allowing for up to 12 different positions. The rated cross-sectional area of the wires varies from 0.14 mm2 to 4 mm2 and is marked with a gray color, while one level has a larger cross-sectional area of 2.5 mm2.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
12
Terminal Block Component Color
Gray
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Jumper Pitch
5.2 mm
Terminal Block Amperage
24 Amp
Terminal Block Width
62.4 mm
Jumper Number of Positions
12
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Model Type
PP-H
Features
Large-surface labeling option
The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
Downloads
Phoenix 3209976 CAD data International.dxfPhoenix 3209976 CAD data International.pdfPhoenix 3209976 CAD data International.stpPhoenix 3209976 Manufacturers declaration International-2.pdfPhoenix 3209976 Manufacturers declaration International.pdfPhoenix 3209976 Safety note English.pdfPhoenix 3209976 Tender Text English.zip
