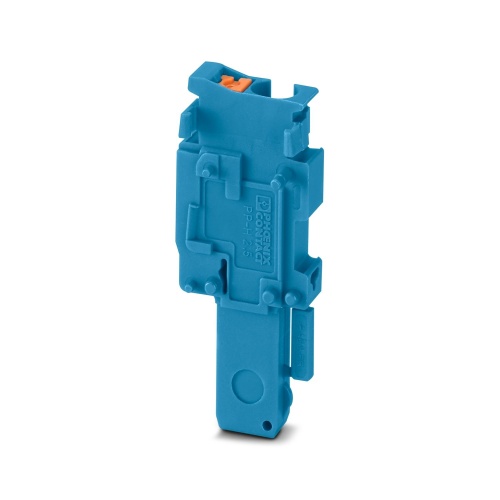

Phoenix Contact 3210101 Plug PP-H 2,5/1-M BU
Normally In Stock
Code: 63799
PP-H 2,5/1-M BU Phoenix 3210101 Terminal Plug Push-in connection 500 V 24 Amp blue Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$1.79
Sale Price
$1.49
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210101 The cable features a nominal voltage of 500 V and a maximum current rating of 24 A, with a single push-in connection at one position. The rated cross-sectional area spans from 0.14 mm² to 4 mm², while the cable's outer diameter is 2.5 mm², encased in a blue-colored insulating material.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
1
Terminal Block Component Color
Blue
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Jumper Pitch
5.2 mm
Terminal Block Amperage
24 Amp
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Large-surface labeling option
The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
Downloads
Phoenix 3210101 CAD data International.dxfPhoenix 3210101 CAD data International.pdfPhoenix 3210101 CAD data International.stpPhoenix 3210101 Manufacturers declaration International-2.pdfPhoenix 3210101 Manufacturers declaration International.pdfPhoenix 3210101 Safety note English.pdfPhoenix 3210101 Tender Text English.zip
