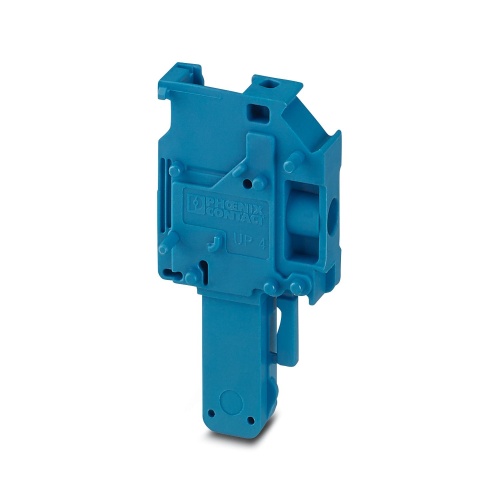

Phoenix Contact 3060092 Plug UP 4/ 1-R BU
Normally In Stock
Code: 63792
Phoenix 3060092 Terminal Plug Screw connection 800 V 32 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.33
Sale Price
$1.94
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3060092 A plug with a rating of 800 volts and 32 amps features a single position and uses a screw connection. The available cross-sectional areas range from 0.2 to 6 square millimeters, while the plug itself has a nominal cross-section of 4 square millimeters and is colored blue.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
6.2 mm
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Amperage
32 Amp
Jumper Pitch
6.2 mm
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
The COMBI plugs for self-assembly provide solutions that users can implement themselves
The screw plugs can be combined with COMBI terminal blocks with all forms of connection technology and are available in two versions
The plugs are assembled directly on site by snapping together 1-position plug elements
The plug design enables space-saving potential distribution by using four-conductor terminal blocks with two slots
Downloads
Phoenix 3060092 CAD data International.dxfPhoenix 3060092 CAD data International.pdfPhoenix 3060092 CAD data International.stpPhoenix 3060092 Manufacturers declaration English.pdfPhoenix 3060092 Manufacturers declaration International.pdfPhoenix 3060092 Safety note English.pdfPhoenix 3060092 Tender Text English.zip
