Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

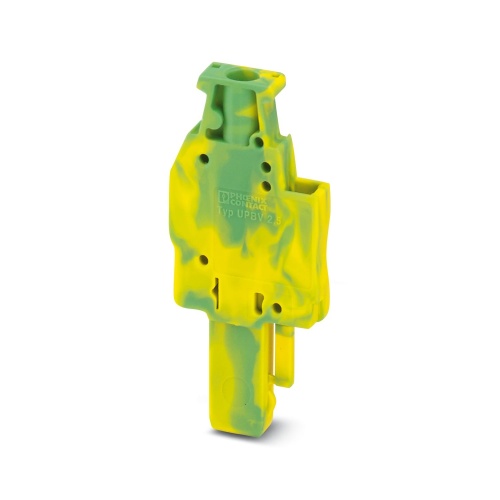

Phoenix Contact 3045253 Plug UPBV 2,5/ 1 GNYE
Normally In Stock
Code: 63786
Phoenix 3045253 Terminal Plug Screw connection 500 V 24 Amp green-yellow Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.81
Sale Price
$2.34
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3045253 The plug has a voltage rating of 500 V and a nominal current capacity of 24 A, with a single connection point that is secured via a screw connection. Its rated cross-sectional area is 2.5 mm², but it can accommodate areas ranging from 0.14 to 4 mm², and is colored green-yellow.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
5.2 mm
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Jumper Pitch
5.2 mm
Terminal Block Amperage
24 Amp
Terminal Block Component Color
Green/Yellow
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Can be bridged with FBS ... standard bridges
Large-surface labeling option
Practical coding option
The connected conductors can be led directly into the cable duct to save space
Downloads
Phoenix 3045253 CAD data International.dxfPhoenix 3045253 CAD data International.pdfPhoenix 3045253 CAD data International.stpPhoenix 3045253 Manufacturers declaration English.pdfPhoenix 3045253 Manufacturers declaration International.pdfPhoenix 3045253 Safety note English.pdfPhoenix 3045253 Tender Text English.zip
Code: 63786
Phoenix Contact 3045253 Plug UPBV 2,5/ 1 GNYE
