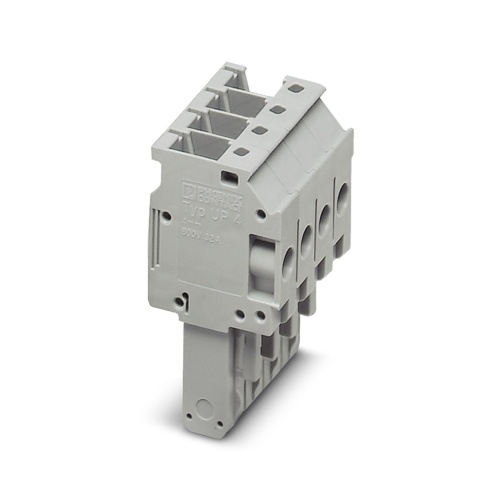

Phoenix Contact 3060144 Plug UP 4/ 4
Normally In Stock
Code: 63760
Phoenix 3060144 Terminal Plug Screw connection 800 V 32 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$7.07
Sale Price
$5.89
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3060144 The plug has a nominal voltage of 800V and a maximum current capacity of 32A, accommodating four different positions for connections via screw fasteners, with an insulated cross-sectional area ranging from 0.2mm² to 6mm², and is typically identified by its gray color.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
24.8 mm
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Amperage
32 Amp
Jumper Pitch
6.2 mm
Jumper Number of Positions
4
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Screw actuation from the side
Conductor connection from above
The plug design enables space-saving potential distribution by using four-conductor terminal blocks with two slots
Downloads
Phoenix 3060144 CAD data International.dxfPhoenix 3060144 CAD data International.pdfPhoenix 3060144 CAD data International.stpPhoenix 3060144 Manufacturers declaration English.pdfPhoenix 3060144 Manufacturers declaration International.pdfPhoenix 3060144 Safety note English.pdfPhoenix 3060144 Tender Text English.zip
