Code: 63143
Phoenix Contact 3049961 Feed-through terminal block RTO 5-TC
Normally In Stock
RTO 5-TC Phoenix 3049961 Bolt connection terminal block Bolt connection 1000 V 41 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$4.44
Sale Price
$3.70
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

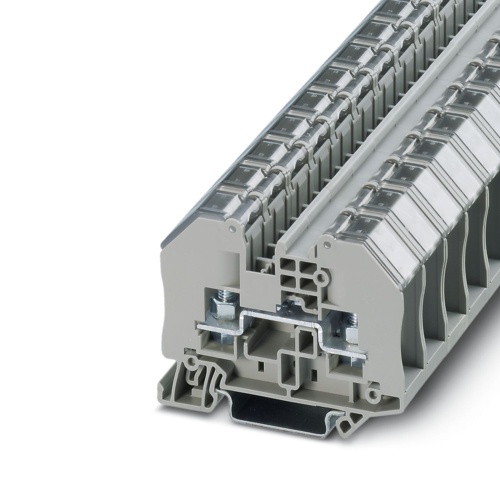

Phoenix Contact 3049961 A feed-through terminal block features a nominal voltage of 1000 V and a nominal current capacity of 41 A. It has two connections and uses bolt connections at one level. The rated cross-sectional area is 6 mm2 and can be mounted using NS 35/7,5 or NS 35/15 types, with the exterior color being gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
16.3 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Bolt Connection
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
41 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Bolt Connection Terminal Block
Sub Component
Feed-Through Terminal Block
Model Type
RTO
Features
Four bridge shafts per terminal block

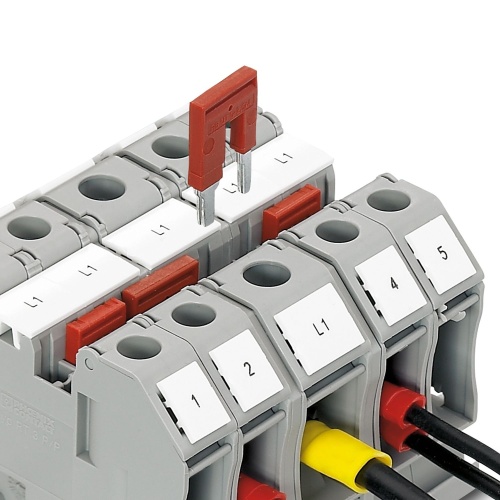

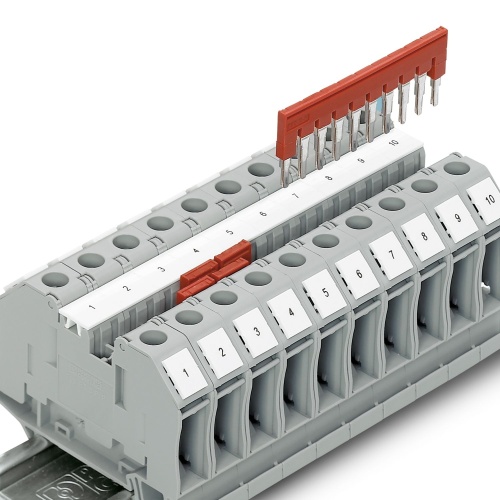

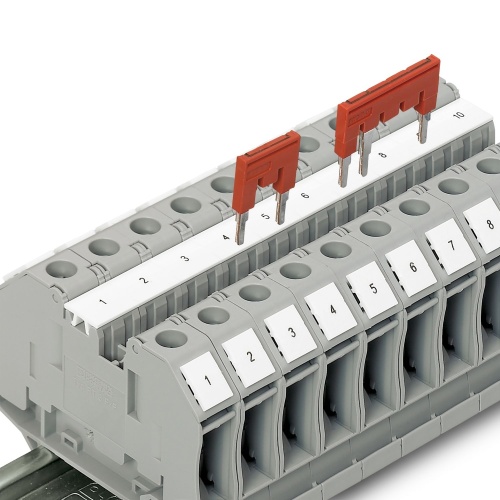

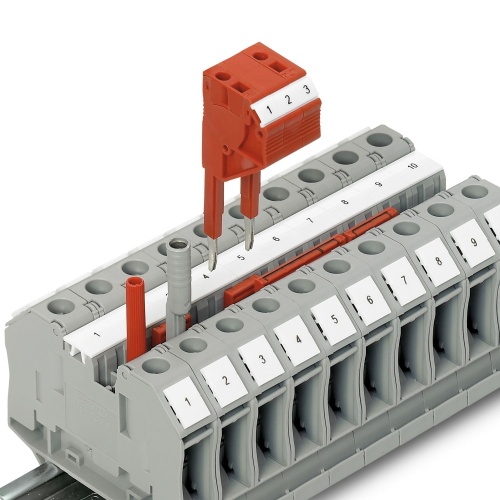

Easy bridging and potential distribution using the patented plug-in bridges from the CLIPLINE complete system

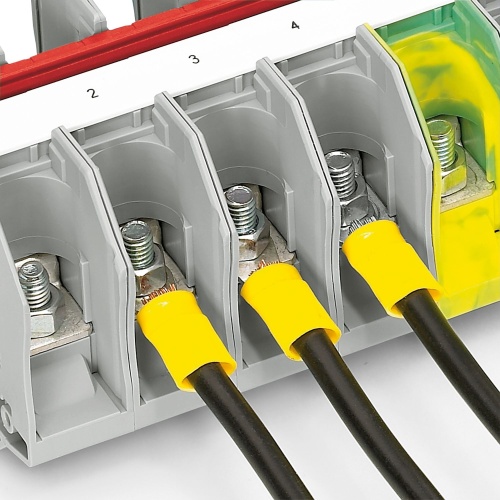

The screws are secured against loosening by captive spring-loaded spacers
Large-surface labeling options in the terminal center and above the terminal points
Terminal point always freely accessible
