Eaton C361ND Rotary Disconnect Switch - 60 Amp, 600 VAC, 250 VDC
Normally In Stock
Code: 626337
Eaton C361ND Rotary Disconnect Switch - 60 Amp, 600 VAC, 250 VDC
Condition: New
Usually ships Same Day or Next Day$560.76
Sale Price
$467.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

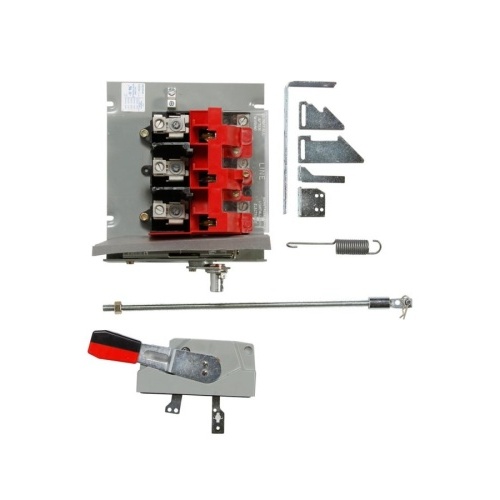

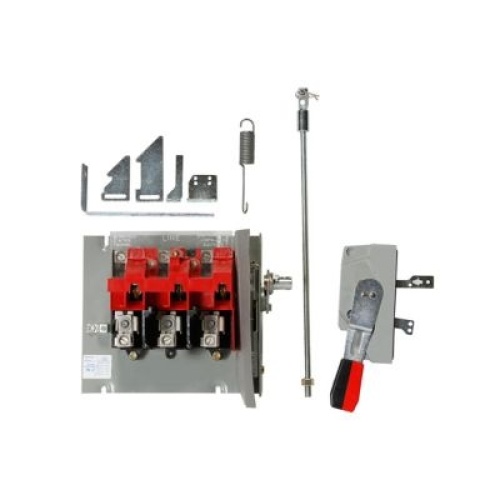

Eaton C361ND - Type C361 Flange Mounted Disconnect Switch, Switch and operating mechanism only, #2-14 AWG Cu/Al, Right-hand mounting, 15 hp at 208 Vac, 15 hp at 240 Vac, 30 hp at 480 Vac, 50 hp at 600 Vac, 10 hp at 250 Vdc, Non-fusible, 60A, 7-16 in depth - Maximum horsepower ratings refer to switch only. DOES NOT include handle, must be purchased separately.
Specifications
Disconnect Enclosure Width
24 In
Manufacturer
Eaton
Disconnect Enclosure Height
8.5 In
Enclosure Disconnect Type
Rotary Disconnect Switch
Disconnect Enclosure Depth
12.2 In
Features
Full range of UL508 and UL98 products, 600VAC max
Provide load break switching and isolation for machine and control circuits - R5 Series (UL508), 16A – 100A
Available in fusible and non-fusible styles providing quick-make, quick-break functionality for safety isolation of any low voltage circuit - R9 Series (UL98), 30A - 1200A
Broad offering of handles, shafts and accessories to accommodate a variety of applications
Horsepower rated
Available designs for manual transfer applications (16A – 1200A)
