Code: 626320
Eaton C361SD22 Rotary Disconnect Switch - 60 Amp, 600 VAC, 250 VDC
Normally In Stock
Eaton C361SD22 Rotary Disconnect Switch - 60 Amp, 600 VAC, 250 VDC
Condition: New
Usually ships Same Day or Next Day$858.94
Sale Price
$715.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

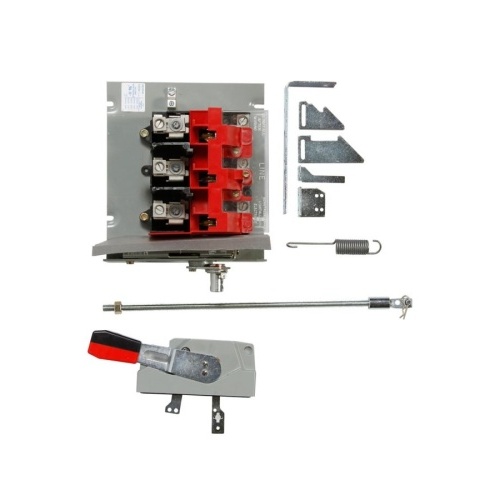

Eaton C361SD22 - Type C361 Flange Mounted DS, Switch and operating mechanism only, #2-14 AWG Cu/Al, Right-hand MTG, 15 hp at 208 Vac, 60A at 250V, 30A at 600V fuse clip rating, 60A, 7-16 in depth - Maximum horsepower ratings refer to switch only. Fuse clips are non-interchangeable type for Class H, J, K, or R type fuses only. DOES NOT include handle, must be purchased separately.
Specifications
Manufacturer
Eaton
Enclosure Disconnect Type
Rotary Disconnect Switch
Voltage
600 VAC
Current
400 Amp
Component
Rotary Disconnect Switch
Poles
3 Pole
Disconnect Enclosure Width
24"
Disconnect Enclosure Height
8.375"
Disconnect Enclosure Depth
12.281"
Features
Full range of UL508 and UL98 products, 600VAC max
Provide load break switching and isolation for machine and control circuits - R5 Series (UL508), 16A – 100A
Available in fusible and non-fusible styles providing quick-make, quick-break functionality for safety isolation of any low voltage circuit - R9 Series (UL98), 30A - 1200A
Broad offering of handles, shafts and accessories to accommodate a variety of applications
Horsepower rated
Available designs for manual transfer applications (16A – 1200A)
