Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 612723

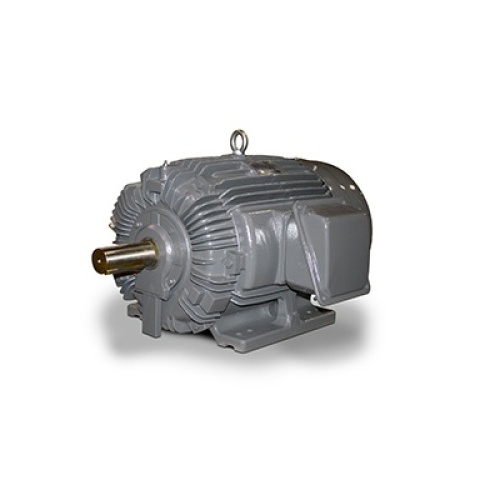

TECO NP1/56G Motor - 1.5 HP, TEFC, 230/460 VAC, 1200 RPM, 182T Frame
Normally In Stock
TECO NP1/56G Motor - 1.5 HP, TEFC, 230/460 VAC, 1200 RPM, 182T Frame
Condition: New
Usually ships Same Day or Next Day$753.89
Sale Price
$628.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO NP1/56G - MAX-PE NEMA PREM EFF SEVERE. TEFC INV. DUTY SGR
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Horsepower
1.5 HP
Motor Frame Model
182T
Motor RPM's
1200 RPM
Manufacturer
TECO
Motor Voltage
230/460 VAC
Features
Output Range: 1 – 75 HP
Speed: 3600, 1800, 1200 RPM
Enclosure: Totally Enclosed Fan Cooled (IP54)
Voltage: 230/460 V (Usable on 208 V)
Three Phase, 60 Hz, 1.15 Service Factor (Continuous)
50 Hz, 1.0 Service Factor (Continuous)
Grounding Ring Factory Installed Externally on NDE Bracket for F# 143T – 286T
Internally on NDE for F# 284TS – 405T
Class F Insulation
Class B Temperature Rise
NEMA Design B Torques as a Minimum
Various Ratings also Meet Design C
Cast Iron Frame and End Brackets
Rolled Steel Fan Cover and Main Conduit Box
Grounding Terminal Inside Main Conduit Box
Oversized Main Conduit Box Rotatable in 90 Degree Increments – F1 Mounted
Designed for 40 °C Ambient Temperature
Designed for 3300 ft. Elevation
Bi-Directional Rotation
1045 Carbon Steel Shaft
Aluminum Die Cast Squirrel Cage Rotor Construction
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color: Dark Gray – Munsell 7.5B 3.5/0.5
Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140T – 280T (Non-regreasable)
High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM for F# 280TS and Larger
Automatic Grease Discharge Fittings on Regreasable Models
Labyrinth Type Metal Flinger on Both Ends for F# 280TS and Larger
Cast Iron Inner and Outer Bearing Caps for F# 280TS and Larger
Stainless Steel Nameplate
New Dual Column Design Nameplate as Standard (60/50 Hz)
Suitable for Inverter Use per NEMA MG-1.4.4.2, Part 31
Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
9 Leads for 5 HP and Smaller
12 Leads for 7.5 HP to 75 HP
Motors are U.L. Recognized, CSA Approved and CE Marked
Dual Drilled Feet Available on Most Ratings – Longer Frames (i.e. 145T Drilled also for 143T)
Provisions for Breather Drains for Vertical Mount Down (F# 324T and Larger)
Rubber Dust Flinger on Drive-End for F# 140T – 280T
