Code: 612082

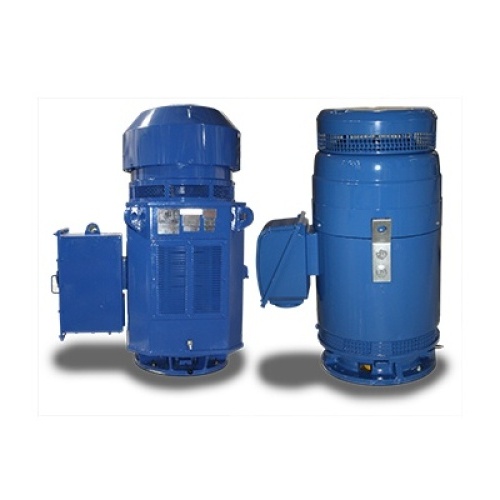

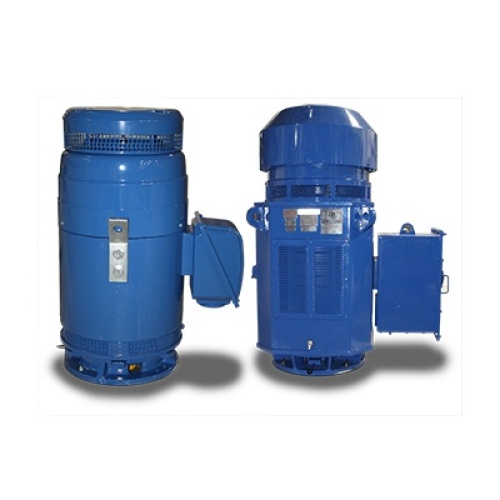

TECO VHP0154 Motor - 15 HP, WPI, 230/460 VAC, 1800 RPM, 254TP Frame
Normally In Stock
TECO VHP0154 Motor - 15 HP, WPI, 230/460 VAC, 1800 RPM, 254TP Frame
Condition: New
Usually ships Same Day or Next Day$5196.22
Sale Price
$4330.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO VHP0154 - VERTICAL HOLLOW SHAF T WPI NEMA PREMIUM
Specifications
Motor Horsepower
15 HP
Motor RPM's
1800 RPM
Motor Frame Model
254TP
Manufacturer
TECO
Motor Enclosure Type
Weather Protected Type I
Motor Voltage
230/460 VAC
Features
Output Range: 7.5 – 800 HP
Speed: 1800 RPM
Enclosure: Weather Protected Type I (WPI)
Voltage: 230/460 V (Usable on 208 V)
Frequency: 60 Hz
Service Factor: 1.15 (Continuous on Sine Wave Power)
Inverter Duty: PWM per NEMA MG‑1 Part 31 at 1.0 Service Factor
Design Nameplate: Dual Column (60/50 Hz) as standard
includes 50 Hz data @ 190/380 V at 1.0 SF
Standard Features:
Coupling with Gib Key
Ball Type Non-Rotating Ring (NRR)
Drip/Splash Cover
Space Heaters (120 V)
Mounting Provisions for Bearing RTDs and Insulated Bearing Housing (for F# 5000 and above)
Optional: 175% High Thrust rating for 444–449TP frames
Motor designed to handle 2 stacked bearings (1 bearing + 1 spacer included as standard)
Insulation: Class F with phenolic alkyd resin varnish
Temperature Rise: Class B
NEMA Design B torques
Main Conduit Box:
Oversized, rotatable in 90° increments
Fully gasketed with NPT threaded entrance
Cast iron (F# 449TP and below)
steel plate (F# 5000 and above)
Ambient Temperature Rating: 40 °C
Altitude Rating: 3,300 ft
Rotation: Counterclockwise (CCW) viewed from top
Frame & End Brackets: Cast iron
Shaft: 1045 hollow carbon steel
Rotor:
Aluminum die-cast squirrel cage (449TP and below)
Copper or copper alloy bar (5000 and above)
Paint System: Phenolic rust-proof base + polyurethane top coat
Paint Color: Dark gray (Munsell 7.5B 3.5/0.5)
