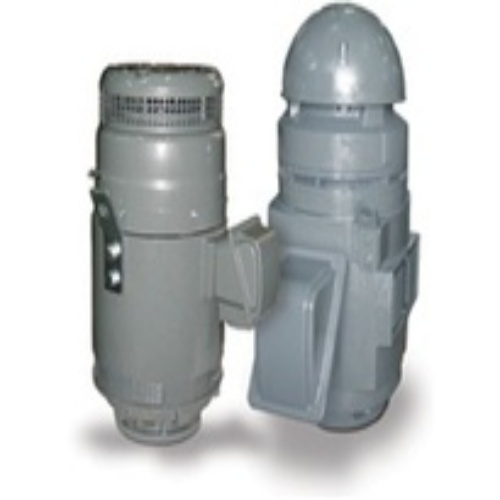

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 612081
TECO VH0154FP Motor - 15 HP, WPI, 230/460 VAC, 1800 RPM, 254TP Frame
Normally In Stock
TECO VH0154FP Motor - 15 HP, WPI, 230/460 VAC, 1800 RPM, 254TP Frame
Condition: New
Usually ships Same Day or Next Day$4857.37
Sale Price
$4047.81
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO VH0154FP - VERTICAL HOLLOW SHAF T WPI FIRE PUMP
Specifications
Motor Horsepower
15 HP
Motor RPM's
1800 RPM
Motor Frame Model
254TP
Manufacturer
TECO
Motor Enclosure Type
Weather Protected Type I
Motor Voltage
230/460 VAC
Features
Output Range: 7.5 – 800 HP
Speed: 1800 RPM
Enclosure: Weather Protected Type I (WPI)
Voltage: 230/460V (Usable on 208V)
Frequency: 60 Hz
Service Factor: 1.15 (Continuous on Sine Wave Power)
Inverter Duty: PWM per NEMA® MG-1 Part 31 at 1.0 Service Factor
Design Nameplate: Dual Column (60/50 Hz) as Standard
50 Hz Data 190/380V at 1.0 S.F.
Standard Features:
Coupling with Gib Key
Ball Type Non-Rotating Ring (NRR)
Drip/Splash Cover
Space Heaters (120V)
Mounting Provisions for Bearing RTDs and Insulated Bearing Housing (for F#5000 and above)
Optional Capability: 175% High Thrust Requirement for 444 - 449TP Frames
Motor Design: Suitable to handle 2 stacked bearings
Motors will ship with 1 bearing and 1 spacer as Standard
Insulation: Class F with Phenolic Alkyd Resin Varnish
Temperature Rise: Class B
NEMA Design: Design B Torques
Main Conduit Box:
Oversized and Rotatable in 90° Increments
Fully Gasketed with NPT Threaded Entrance
Cast Iron for F#449TP and Below
Steel Plate for F#5000
Ambient Temperature: Designed for 40°C
Altitude: Designed for 3300 ft
Rotation: Counterclockwise (CCW) Viewed from Top
Frame & End Brackets: Cast Iron
Shaft Material: 1045 Hollow Carbon Steel
Rotor Construction:
Aluminum Die Cast Squirrel Cage for F#449TP and Below
Copper or Copper Alloy Bar Rotor for F#5000
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color: Dark Gray – Munsell 7.5B 3.5/0.5
