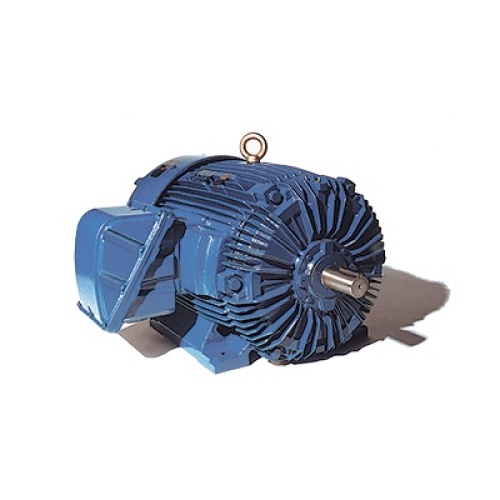

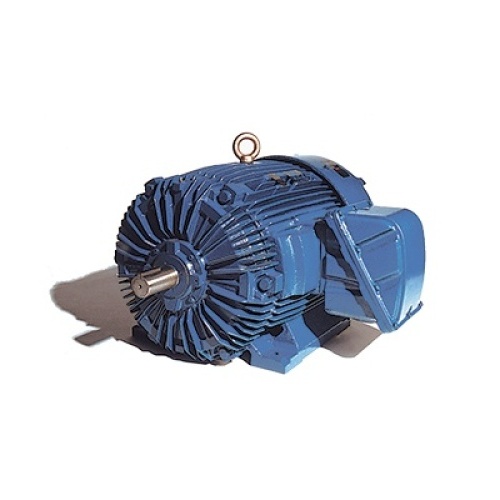

TECO XP0502 Motor - 50 HP, TEFC, 230/460 VAC, 3600 RPM, 326TS Frame
Normally In Stock
Code: 611571
TECO XP0502 Motor - 50 HP, TEFC, 230/460 VAC, 3600 RPM, 326TS Frame
Condition: New
Usually ships Same Day or Next Day$6632.83
Sale Price
$5527.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO XP0502 - TEXP PREMIUM EFFICIENCY EXPLOSION PROOF
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Horsepower
50 HP
Motor Frame Model
326TS
Motor RPM's
3600 RPM
Manufacturer
TECO
Motor Voltage
230/460 VAC
Features
Output Range: 1 - 400 HP
Speed: 3600, 1800, 1200 & 900 RPM
Enclosure: Totally Enclosed Fan Cooled - Explosion Proof (IP55)
Voltage: 230/460V (Usable on 208V)
150HP and Larger is 460V Only
Three Phase, 60 Hz, 1.15 Service Factor (Continuous)
50 Hz, 1.0 Service Factor (Continuous)
Class I, Div. 1, Group C & D and Class II, Groups E, F and G - Temp Code T2D/T3B Up to and Including F# 256T
Class I, Div. 1, Group D and Class II, Groups E, F and G - Temp Code T2D/T3B for F# 284T and Larger
UL File: E84757
CSA File: #64671
Class F Insulation
Class B Temperature Rise
NEMA Design B Torques
Standard with Klixon 9700K Temperature Limiting Switch, 1 per Phase
Grounding Terminal Inside Main Conduit Box
Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
Dual Drilled Back Feet on 447/9 and 5007/9 Frames
Designed for 40˚C Ambient Temperature
Designed for 3300 ft. Elevation
Bi-Directional Rotation
