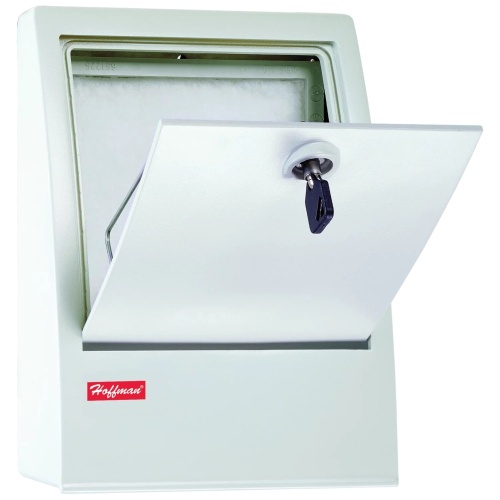

nVent Hoffman AOEFG118 Outdoor Filter Fan Exhaust Grille 120 VAC, 11.8 CFM
Normally In Stock
Code: 6067
nVent Hoffman AOEFG118 Outdoor Filter Fan Exhaust Grille 120 VAC, 11.8 CFM, .3 Amp, Removable F5 filter, Lockable door in hood, Aluminum fan body, plastic impeller, 4.92" x 4.92"
Condition: New
Usually ships Same Day or Next Day$662.35
Sale Price
$551.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Outdoor Filter Fan Exhaust Grille 120 VAC, 11.8 CFM, .3 Amp, Removable F5 filter, Lockable door in hood, Aluminum fan body, plastic impeller, Filter hood permanently fixed to enclosure from inside, Light gray plastic, UL94H-B.
Specifications
Fan Environment
Outdoor
Air Flow Component Shape
Square
Air Flow Component Composition
Plastic
Air Flow Component Type
Hood
Sub Component
Filter Fan Exhaust Grille
Air Flow Component Size
9" X 6.5" X 5"
Component
Louver
Air Flow Component Voltage
120 Volt
Manufacturer
Hoffman
Features
Lockable door in hood
Aluminum fan body, plastic impeller
Removable F5 filter
Two-sided tape provided
Airflow 11.8 CFM (20 cubic meters/hour) free blowing
The fan has a ball bearing axial with a service life minimum of 50,000 hours at 77 F (25 C) and 65 percent relative humidity.
Filter hood permanently fixed to enclosure from inside
Filter mat: Fine grade F5 to DIN EN779 filtering degree: 98 percent of particles larger than 10 µm (10 microns)
Synthetic filter material, temperature resistant to 212 F (100 C), self-extinguishing class F1, moisture resistant to 100 percent RH
2 lead wires, 3.94-inch (100-mm) long, with pressure clamps, 14 gauge max. (2.5 mm)
Downloads
Hoffman AOEFG118 CAD Drawing.zipHoffman AOEFG118 Declaration of Compliance.pdfHoffman AOEFG118 Filter Fan Instruction Manual.pdfHoffman AOEFG118 Outdoor Exhaust Filter Instruction Manual.pdfHoffman AOEFG118 Outdoor Filter Fan and Exhaust Package CAD Files.zipHoffman AOEFG118 Spec Sheet.pdfHoffman AOEFG118 UL Certification.pdfHoffman AOEFG118 User Manual.pdf
