Code: 60490

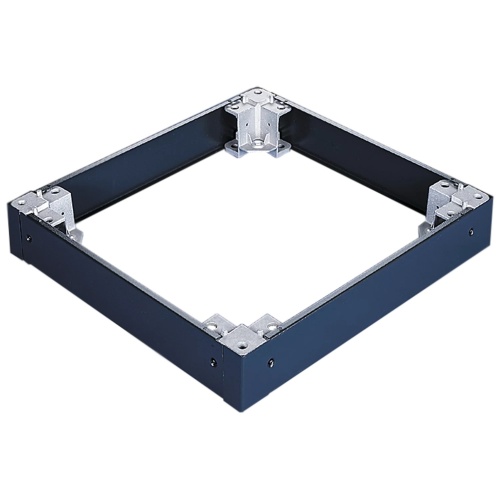

nVent Hoffman P2BP164 PROLINE G2 Plinth Bases
nVent Hoffman P2BP164 600 mmx400 mm PROLINE G2 Plinth Bases
Condition: New
Usually ships Same Day or Next Day$353.50
Sale Price
$294.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

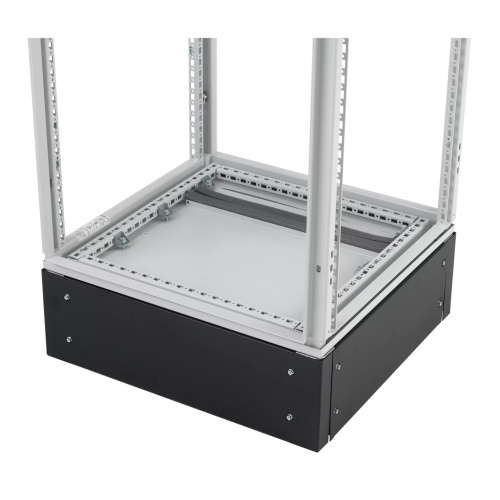

nVent Hoffman P2BP164 PROLINE G2 Plinth Bases PROLINE G2 Plinth Bases install under an enclosure to provide space for cables to enter from below.
Specifications
Fully Sealed Plinth Base
Not Fully Sealed Plinth Base
Disconnect Plinth Base
Non-Disconnect Plinth Base
Component
Plinth Base
(Base Component) Composition
Steel
(Base Component) Gauge Steel
16 Gauge
(Base Component) Fits Enclosure Depth
400 mm
(Base Component) Width
24"
(Base Component) Fits Enclosure Width
600 mm
(Base Component) Depth
15"
Line
PROLINE G2
Manufacturer
Hoffman
Features
100 mm or 200 mm options
Corner blocks can be installed onto the base of the frame independent of the cover plates, enabling the cover plates to be attached after integration and just prior to shipment
Stackable up to 400mm in height using Plinth Base Stacking Kit (not included)
To maintain a NEMA Type 12 environmental rating, gland plate must also be used in the base of the enclosure
Sturdy cast aluminum corner supports for superior performance under load
Four access panels for cable management options at the base of the enclosure
Installation hardware included
