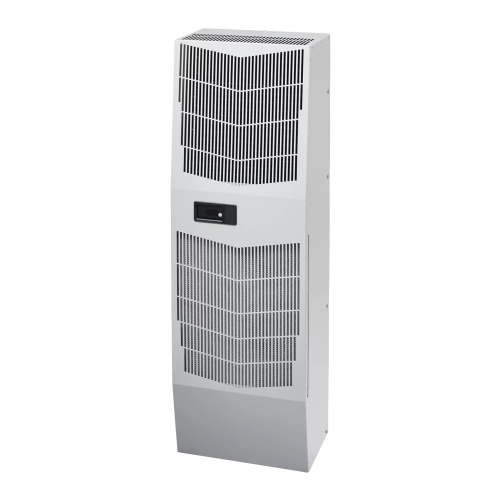

nVent Hoffman G521226G050 Spectracool AC 230V 12000 BTU Indoor
Normally In Stock
Code: 5954
nVent Hoffman G521226G050 Spectracool AC 230V 12000 BTU Indoor
Condition: New
Usually ships Same Day or Next Day$9797.54
Sale Price
$8164.62
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman G521226G050 Spectracool AC 230V 12000 BTU Indoor
Specifications
AC Height
53"
AC Mounting
Side Mount
AC Maximum Ambient Temp
131 F
AC Voltage
230 VAC
AC Watts
3500
AC Max BTU Rating
12000 BTU
AC Type
Air Conditioner (Compressor)
AC Composition
Steel
AC Environment
Outdoor-Indoor
AC Minimum Ambient Temp
-40 F
Component
Air Conditioner
Line
Spectracool
AC Depth
12"
AC Width
18"
AC NEMA Rating
NEMA Type 12
AC NEMA Rating
NEMA Type 3R
AC NEMA Rating
NEMA Type 4
AC Amperage
10.6-9.5 Amp
Manufacturer
Hoffman
Features
Cleanable, reusable aluminum mesh filter included to protect coils for maximum cooling performance in dirty environments
Energy-efficient rotary compressor on most models
Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
R407C, R513A or R134a refrigerants
Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
Attractive industrial design with minimal use of visible fasteners
115, 230 and 400/460 VAC 3-phase power input on most models
Dust-resistant condenser coil allows the unit to be run filterless in most indoor applications
Operating temperature range from -40 F/-40 C to 131 F/55 C
All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped
Reliable mechanical thermostat on enclosure side of the unit
Dual condenser-side air movers for performance redundancy on G52 and G57 models
Galvanized or stainless steel cover for rugged factory and outdoor environments
Galvanized sheet-metal cover for rugged factory and outdoor environments
Exterior and partially recessed mounting options
Downloads
Hoffman G521226G050 CAD Drawing.zipHoffman G521226G050 Declaration of Compliance.pdfHoffman G521226G050 EAC Certification.pdfHoffman G521226G050 EU Certification.pdfHoffman G521226G050 G52 Instruction Manual - Portuguese.pdfHoffman G521226G050 Spec Sheet.pdfHoffman G521226G050 UL Certification.pdfHoffman G521226G050 User Manual.pdf
