Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

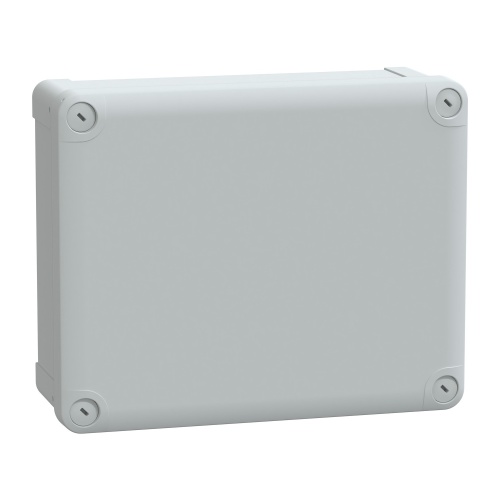

Schneider Electric NSYTBP24198 Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 9.49" x 7.64" x 7.64" (HxWxD)
Normally In Stock
Code: 592111
Schneider Electric NSYTBP24198 - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 9.49" x 7.64" x 7.64" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$60.23
Sale Price
$50.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Thalassa TBP is a wall-mounted enclosure made of polycarbonate material, with a gray RAL 7035 color. It features a captive screw flat outside sealed area, a low plain cover with plastic screw fixing, and Class II electrical insulation. With an operating temperature range of -13...176 °F (-25...80 °C) and fire resistance up to 1760°F (960°C), it provides a secure and durable solution for outdoor installations. The internal dimensions are 6.89 in (175mm) width, 8.86 in (225mm) height, and 3.15 in (80mm) depth.
Specifications
Enclosure Composition
Polycarbonate
Manufacturer
Schneider Electric
Enclosure Height
9.49"
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Line
Thalassa TBP
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Enclosure Width
7.64"
Enclosure Depth
7.64"
Features
Thalassa TBP industrial PC box with opaque PC cover H20
Int is 225 x 175 x 80 mm

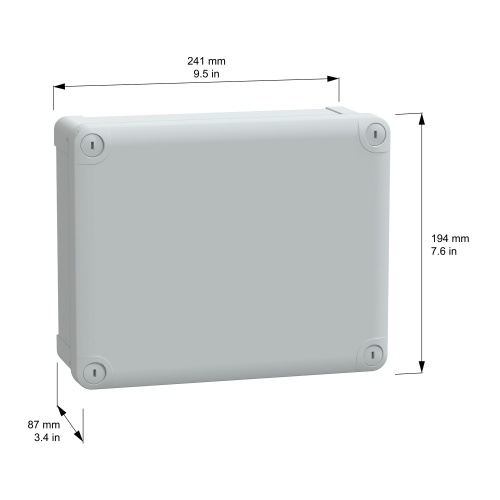

Ext is 241 x 194 x 194 mm
Wall mounted enclosure
Low plain cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
