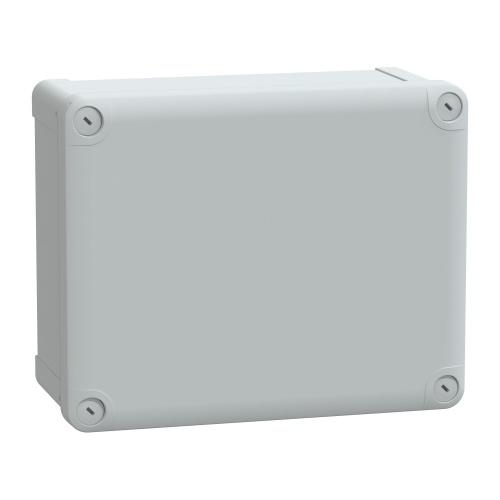

Schneider Electric NSYTBP241910 Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 9.49" x 7.52" x 5.04" (HxWxD)
Normally In Stock
Code: 592107
Schneider Electric NSYTBP241910 - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 9.49" x 7.52" x 5.04" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$52.30
Sale Price
$43.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Thalassa TBP is a wall-mounted enclosure suitable for outdoor use (with canopy or shelter). Its polycarbonate construction provides durability and electrical insulation (Class II). The gray RAL 7035 color fits seamlessly in various settings. With a low plain cover, captive screw locks, and removable parts, it ensures easy access and secure protection. Operating at temperatures from -13 to 176 °F (-25 to 80 °C) and with a fire resistance of 1760 °F (960 °C), this enclosure guarantees reliable performance. Internal dimensions measure 6.89 x 8.86 x 3.94 in (175 x 225 x 100 mm).
Specifications
Enclosure Composition
Polycarbonate
Manufacturer
Schneider Electric
Enclosure Height
9.49"
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Line
Thalassa TBP
Enclosure Depth
5.04"
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Enclosure Width
7.52"
Features
Thalassa TBP industrial PC box with opaque PC cover H20
Int is 225 x 175 x 100 mm

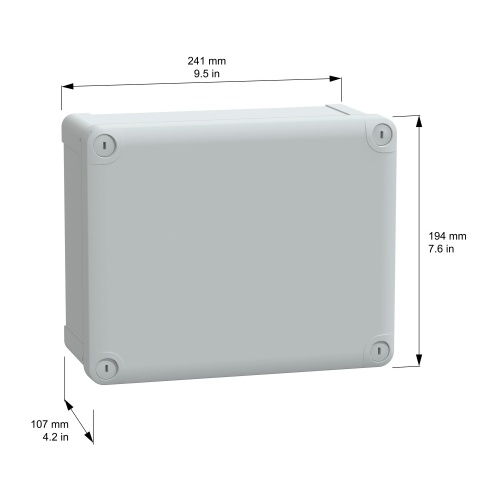

Ext is 241 x 191 x 128 mm
Wall mounted enclosure

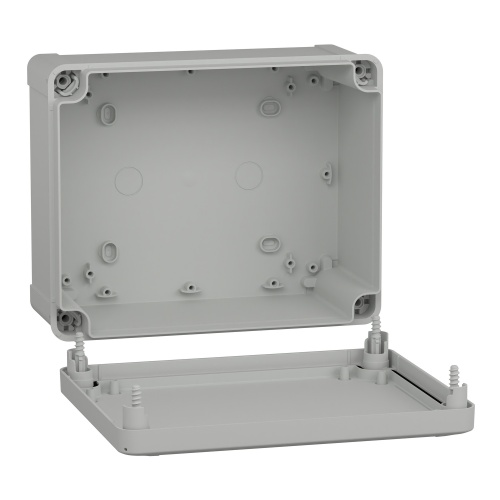

Low plain cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
