Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

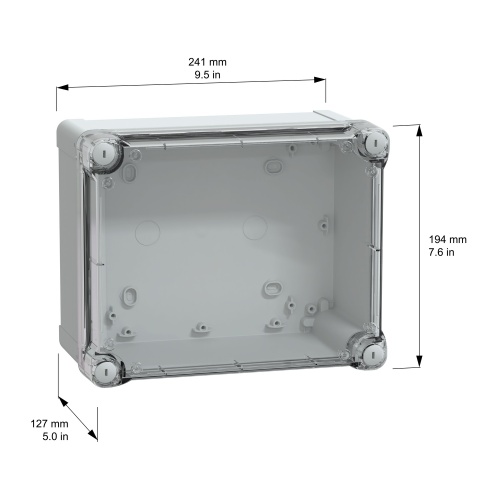

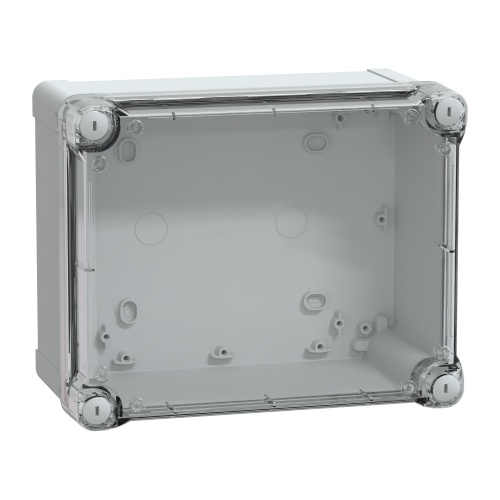

Schneider Electric NSYTBP241912HT Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 9.49" x 7.64" x 5" (HxWxD)
Normally In Stock
Code: 592103
Schneider Electric NSYTBP241912HT - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 9.49" x 7.64" x 5" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$75.22
Sale Price
$62.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYTBP241912HT from the Thalassa range is a polycarbonate enclosure designed for outdoor wall mounting. With a gray RAL 7035 color, it features a high transparent cover fixed with plastic screws and captive screw locking outside the sealed area. The enclosure has removable parts and provides electrical insulation of Class II. Operating temperature ranges from -13 to 176 °F (-25 to 80 °C), offering fire resistance up to 1760 °F (960 °C). Internal dimensions include a width of 6.89 in (175 mm), height of 8.86 in (225 mm), and depth of 4.72 in (120 mm).
Specifications
Enclosure Depth
5"
Enclosure Composition
Polycarbonate
Manufacturer
Schneider Electric
Enclosure Height
9.49"
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Line
Thalassa TBP
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Enclosure Width
7.64"
