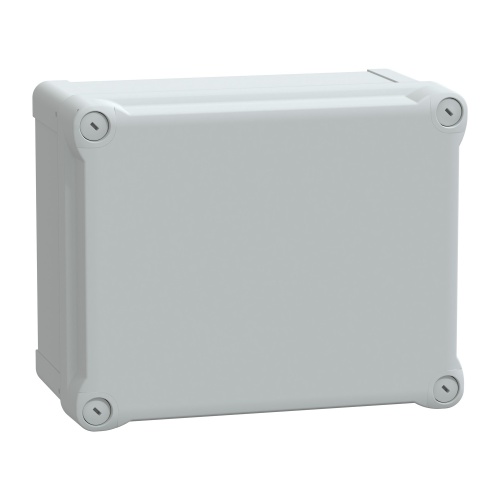

Schneider Electric NSYTBP241912H Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 9.49" x 7.64" x 5" (HxWxD)
Normally In Stock
Code: 592102
Schneider Electric NSYTBP241912H - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 9.49" x 7.64" x 5" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$73.36
Sale Price
$61.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Introducing the Thalassa TBP Wall Mounted Enclosure from Schneider Electric. Made of durable polycarbonate material in gray color (RAL 7035), it features a high plain cover with removable parts secured by captive screws. With an internal space of 6.89" x 8.86" x 4.72", it is suitable for outdoor use (with canopy or shelter) and offers excellent fire resistance of up to 1760°F (960°C). Perfect for Class II electrical insulation, the TBP ensures safe storage in temperatures ranging from -13°F to 176°F (-25°C to 80°C).
Specifications
Enclosure Depth
5"
Enclosure Composition
Polycarbonate
Manufacturer
Schneider Electric
Enclosure Height
9.49"
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Line
Thalassa TBP
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Enclosure Width
7.64"
Features
Thalassa TBP industrial PC box with opaque PC cover H40

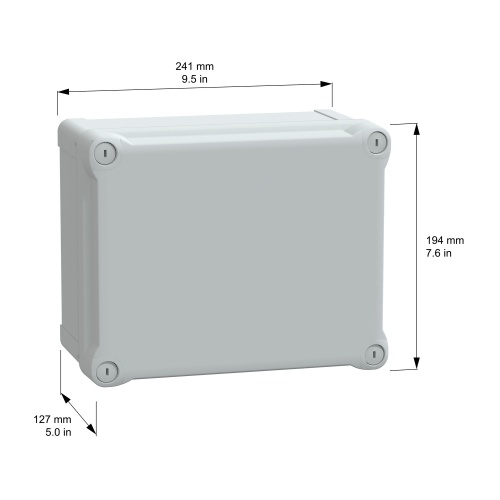

Int is 225 x 175 x 120 mm
Ext is 241 x 194 x 127 mm
Wall mounted enclosure
High plain cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
