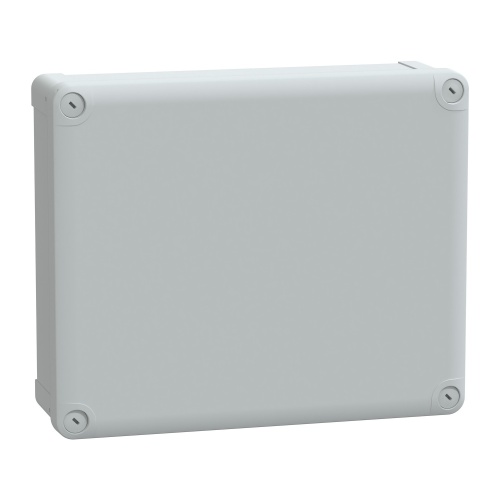

Schneider Electric NSYTBP29248 Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 11.46" x 9.49" x 3.46" (HxWxD)
Normally In Stock
Code: 592099
Schneider Electric NSYTBP29248 - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 11.46" x 9.49" x 3.46" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$107.77
Sale Price
$89.81
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Thalassa TBP enclosure (Schneider Electric NSYTBP29248) is an outdoor wall-mounted solution made of durable polycarbonate material (Gray RAL 7035). It features a low plain cover with captive screws for easy removal. Class II electrical insulation, fire resistance up to 1760°F (960°C), and a wide internal space measuring 8.86” x 10.83” x 3.15” (225mm x 275mm x 80mm) make it suitable for various applications in temperatures ranging from -13°F to 176°F (-25°C to 80°C). Secure and adaptable for any project.
Specifications
Enclosure Composition
Polycarbonate
Manufacturer
Schneider Electric
Enclosure Depth
3.46"
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Width
9.49"
Line
Thalassa TBP
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Enclosure Height
11.46"
Features
Thalassa TBP industrial PC box with opaque PC cover H20
Int is 275 x 225 x 80 mm

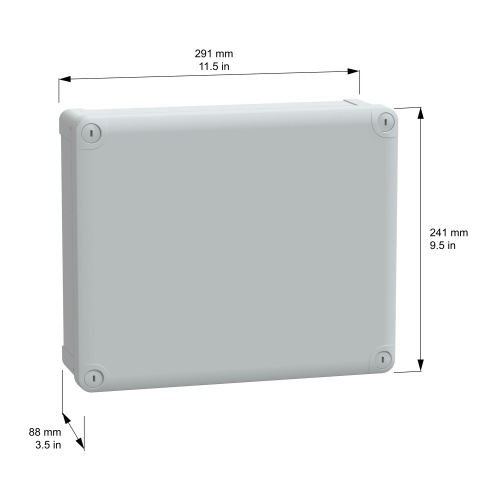

Ext is 291 x 241 x 88 mm
Wall mounted enclosure

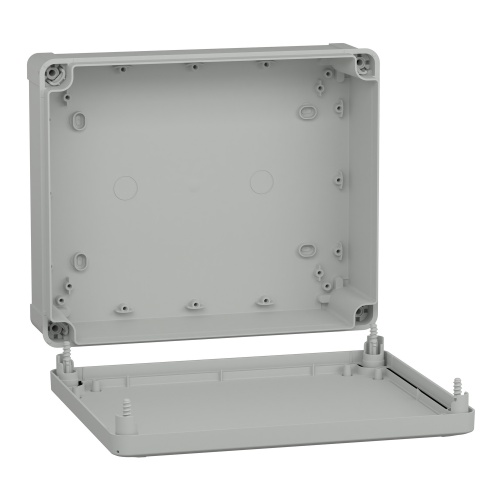

Low plain cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
