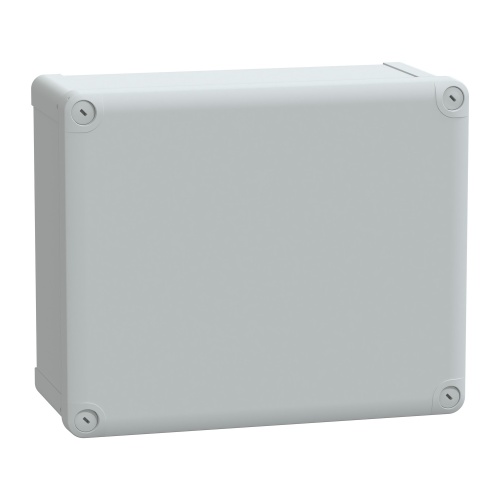

Schneider Electric NSYTBP292412 Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 11.46" x 9.49" x 5.04" (HxWxD)
Normally In Stock
Code: 592098
Schneider Electric NSYTBP292412 - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 11.46" x 9.49" x 5.04" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$122.75
Sale Price
$102.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYTBP292412 Thalassa TBP is a wall-mounted enclosure designed for outdoor use in harsh conditions. Made of polycarbonate with a gray RAL 7035 color, it features a low plain cover and captive screw flat outside sealed area. Its removable parts are secured with captive screws. With an internal dimension of 8.86" (width) x 10.83" (height) x 4.72" (depth), it offers ample space for electrical components. This Class II insulated enclosure has a wide operating temperature range of -13 to 176 °F (-25 to 80 °C), ensuring reliability in extreme temperatures. It also provides exceptional fire resistance, withstanding temperatures up to 1760 °F (960 °C).
Specifications
Enclosure Composition
Polycarbonate
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Width
9.49"
Line
Thalassa TBP
Enclosure Depth
5.04"
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Enclosure Height
11.46"
Features
Thalassa TBP industrial PC box with opaque PC cover H20

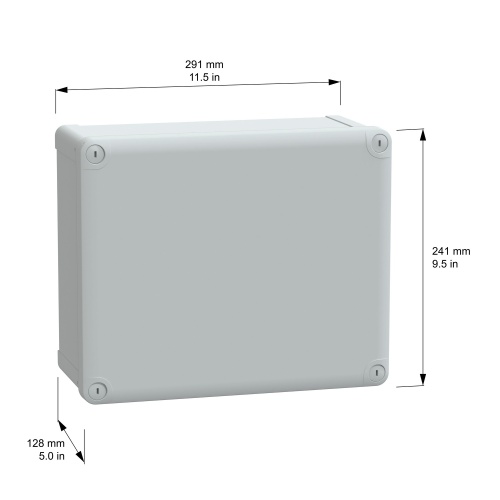

Int is 275 x 225 x 120 mm
Ext is 291 x 241 x 128 mm
Wall mounted enclosure
Low plain cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
