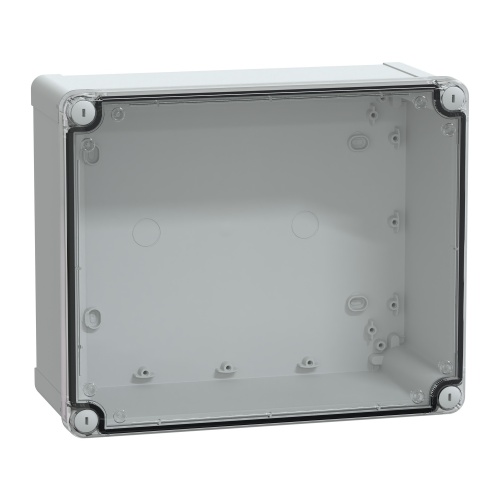

Schneider Electric NSYTBP292412HT Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 11.46" x 9.49" x 5.04" (HxWxD)
Normally In Stock
Code: 592094
Schneider Electric NSYTBP292412HT - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 11.46" x 9.49" x 5.04" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$123.84
Sale Price
$103.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Thalassa TBP enclosure, designed by Schneider Electric, is a wall-mounted solution for outdoor use. Made of polycarbonate, it features a high transparent cover for easy viewing and a captive screw flat outside sealed area for added security. The gray RAL 7035 color and plastic screws ensure a sleek and durable design. With an operating temperature range of -13 to 176 °F (-25 to 80 °C) and fire resistance up to 1760 °F (960 °C), this enclosure is suitable for a variety of environments. Its internal dimensions of 8.86 in x 10.83 in x 4.72 in (225 mm x 275 mm x 120 mm) provide ample space for your equipment.
Specifications
Enclosure Composition
Polycarbonate
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Width
9.49"
Line
Thalassa TBP
Enclosure Depth
5.04"
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Enclosure Height
11.46"
Features
Thalassa TBP industrial PC box with transparent PC cover H60
Int is 275 x 225 x 120 mm

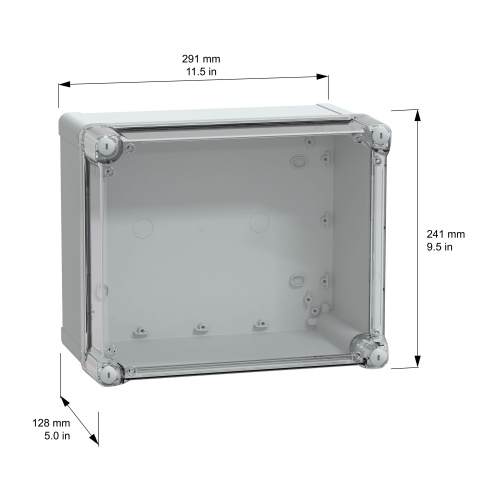

Ext is 291 x 241 x 128 mm

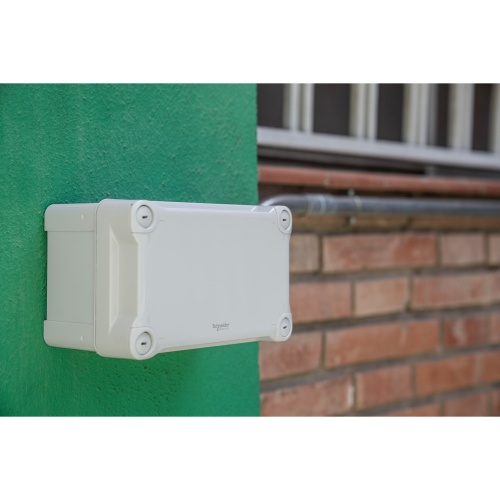

Wall mounted enclosure
High transparent cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
