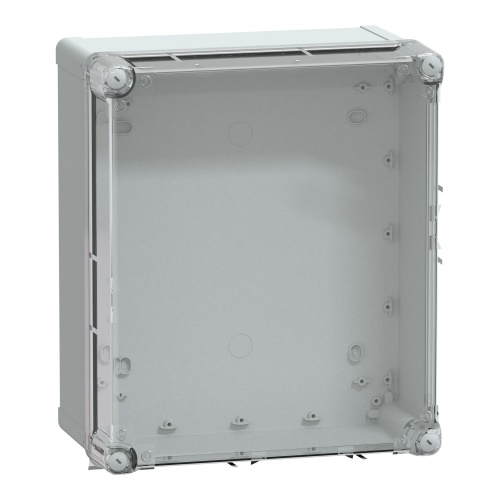

Schneider Electric NSYTBP342916HT Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 13.43" x 11.46" x 5.04" (HxWxD)
Normally In Stock
Code: 592083
Schneider Electric NSYTBP342916HT - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 13.43" x 11.46" x 5.04" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$120.29
Sale Price
$100.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYTBP342916HT Thalassa TBP is a wall-mounted enclosure designed for outdoor use (with canopy or shelter). Made of polycarbonate, it features a high transparent cover and captive screw flat outside sealed area. With a gray RAL 7035 color, it has an internal width of 10.83 in, internal height of 12.80 in, and internal depth of 6.30 in. It operates within a temperature range of -13…176 °F (-25…80 °C), offers fire resistance up to 1760 °F (960 °C), and is classified as Class II for electrical insulation.
Specifications
Enclosure Composition
Polycarbonate
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Line
Thalassa TBP
Enclosure Height
13.43"
Enclosure Width
11.46"
Enclosure Depth
5.04"
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Features
Thalassa TBP industrial PC box with transparent PC cover H60
Int is 325 x 275 x 160 mm

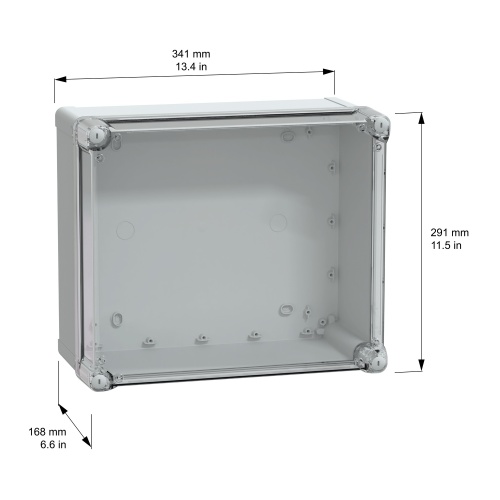

Ext is 341 x 291 x 168 mm

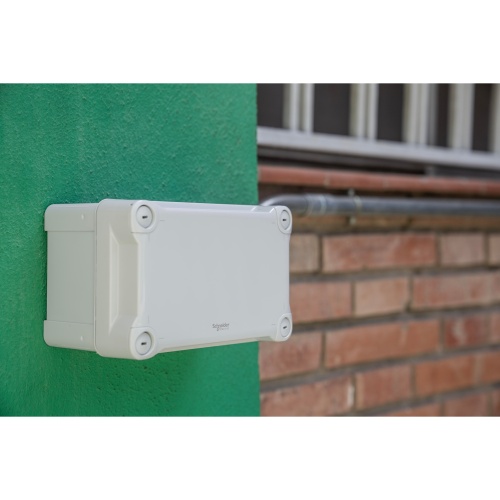

Wall mounted enclosure
High transparent cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
