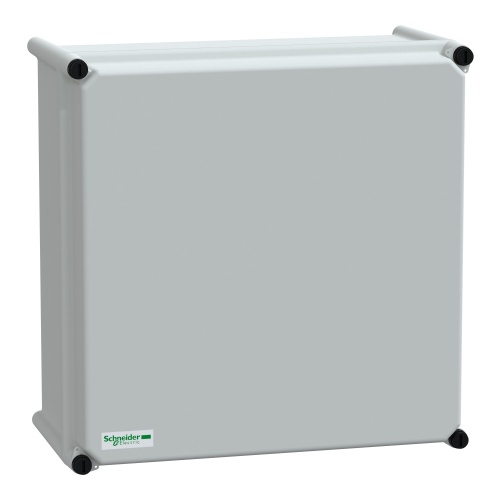

Schneider Electric NSYPLSC3636G Thalassa PLS Wall mounted Polycarbonate Enclosure - IP66, 14.17" x 14.17" x 7.09" (HxWxD)
Normally In Stock
Code: 592082
Schneider Electric NSYPLSC3636G - Polycarbonate - Slot screw - IK09 - IP66 - 14.17" x 14.17" x 7.09" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$100.14
Sale Price
$83.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

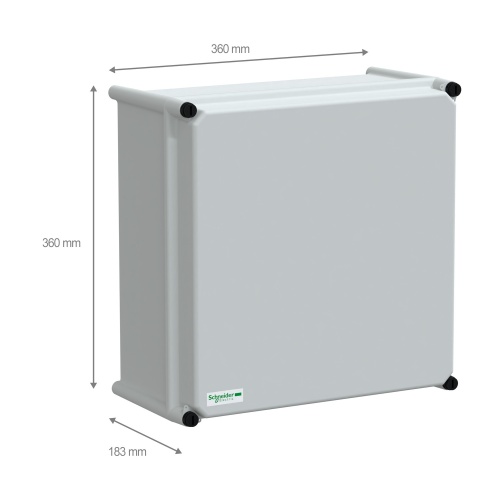

Schneider Electric NSYPLSC3636G is a Thalassa PLS wall-mounted enclosure designed for electrical applications. Its cover is made of polycarbonate, while the rear is reinforced with fiberglass. The enclosure is secured with a slot screw lock and features a removable cover locking screw. With a nominal depth of 7.09 inches (180 mm) and a nominal height and width of 14.17 inches (360 mm), this Class II insulation enclosure provides a high level of protection with an IK09 degree of protection against mechanical impacts and can withstand temperatures of up to 1760 °F (960 °C) according to IEC 62208.
Specifications
Enclosure Composition
Polycarbonate
Enclosure Depth
7.09"
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Line
Thalassa PLS
Enclosure Latch Type
Slot Screw
Enclosure Impact Rating
IK09
Enclosure Height
14.17"
Enclosure Width
14.17"
Features
Polyester rear for enhanced impact resistance (IK09)
3 cover options
Dimensions of sides all multiple of 9 cm, enabling assemblies
Suitable for indoor and outdoor applications
Harsh environment resistant
Easy installation of mounting plates and supports
High protection against dust and water (IP66)
Total electrical insulation (class II)
