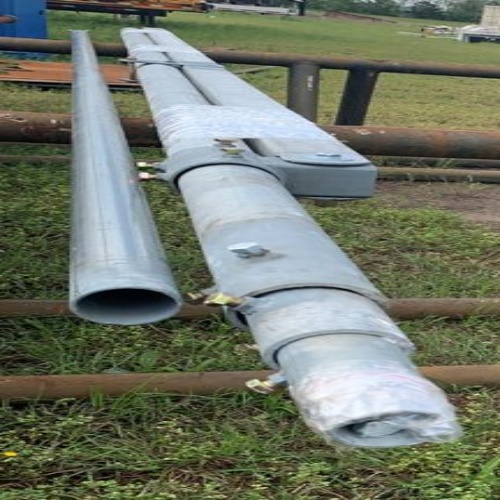

Beacon Pole LM-5 Self-Supporting 60' Robust Tilt-Over Tower Monopole Mast System

Beacon Pole LM-5 - Unobtrusive Design No tower climbing required for installing, erecting, or servicing. About 6 man-hours to install and set-up. Requires no support from buildings and no guy wires.  Azimuth is adjustable from the ground. A lockable, hinged patented design allows servicing radio/antenna from the ground.  Cables are routed internally for protection and neat appearance. No excavation/pouring heavy concrete base. Requires a 7 foot deep post hole with 6-7 sacks of premix. Mast sections are galvanized for long life. The LM-5 Mast is intended to support a single Fixed Wireless Internet radio/antenna at 4.2 Square Feet at 60 feet above the ground.  We can supply special heavier masts for larger radio/antenna or when multiple units are required for AP and Backhaul, as in micro-pop applications.  Please contact us with your special requirements. Made In The USA. Kits - Tower Kits Include All Sections and Connection Hardware - Up To (5) Sections - (2) Cheek Plates & Bolts - (1) Toggle & Bolts - (1) Strain Relief - (2) Grub Bolts

Specifications
Component	Self-Supporting Pole
Drilled Hole Diameter	12"
Grout Depth	-2"
Manufacturer	Beacon Pole
Max Mast Height	60 ft
Base Section Burial	84"
Max Antenna Load	4.2 Square Feet
