Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 591130

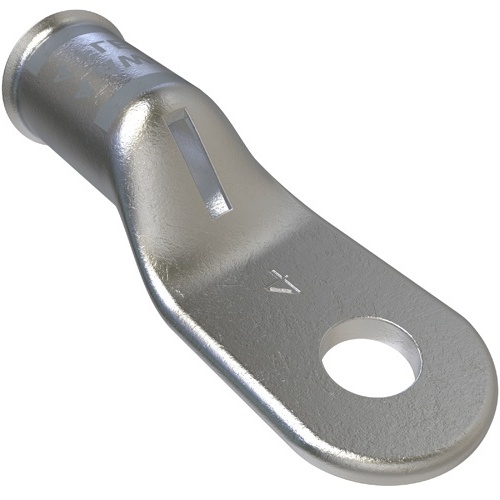

Ilsco CCL-4-10 Compression Lug - Copper, 4 AWG, Stranded, 35 kV, #10, Silver
Normally In Stock
Ilsco CCL-4-10 - Copper Compression Lug, Conductor Size 4, 1 Hole, #10 Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$6.41
Sale Price
$4.93
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco CCL-4-10 - Copper Compression Lug suitable for 4 AWG conductor size, featuring a #10 bolt size and standard barrel with a sight window. Tin plated for durability, UL and CSA listed with a voltage rating of 35 kV. Mounting hole diameter of 5.3848mm and tang length of 16.51mm. Color code: gray.
Specifications
Color
Silver
Terminal Stud Size Opening
#10
Component
Compression Lug
Manufacturer
Ilsco
Terminal for Wire Gauge
4 AWG
Material
Copper
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Electro-tin plated
Sight hole
Solid seamless tang
Electrolytic copper
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
For copper conductor only
Rated to 90˚ C
