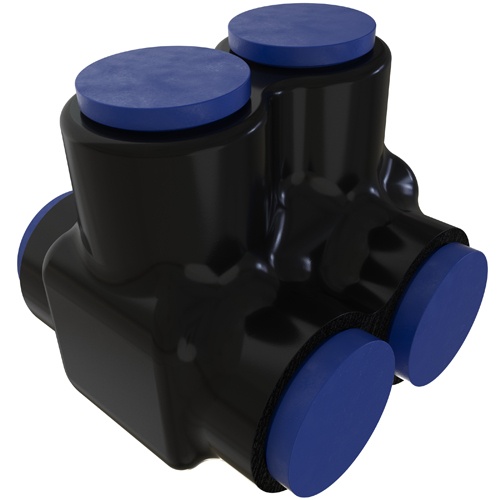

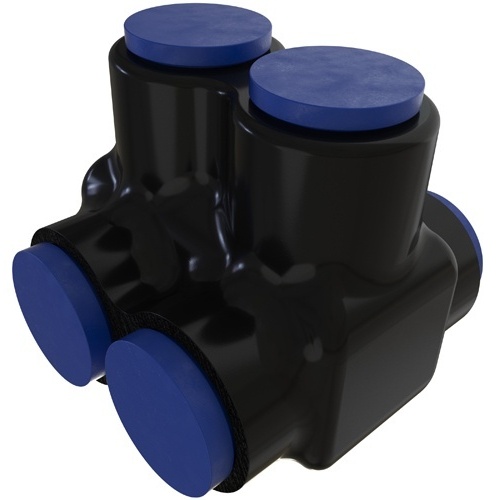

Ilsco PBTD-2-350-F Multi-Tap Connector - Aluminum, 350-6 AWG, Stranded, 600 V, 350 Amp, Black
Normally In Stock
Code: 591044
Ilsco PBTD-2-350-F - Nimbus4Flex Insulated Flexible Aluminum Multi-Tap Connector, Conductor Range 350-6, Flex 250-6 H,I,K 4/0-4 M 262.2-4 DLO, 2 Ports, Dual Sided Entry, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$178.71
Sale Price
$137.47
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco PBTD-2-350-F - The Nimbus4Flex Insulated Flexible Aluminum Multi-Tap Connector features a conductor range of 350-6 for CU and AL, with 2 ports and dual sided entry. UL and CSA listed, with a temperature rating of 90°C and voltage rating of 600V. Contains DE-OX® and has a flammability rating of UL 94. Suitable for cold temperatures down to -45°C.
Specifications
Color
Black
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
600 V
Number of Connectors
2
Terminal for Wire Gauge
350-6 AWG
Component
Multi-Tap Connector
Insulation Material
Plastisol
Features
Broad wire range: 750kcmil-14
UL Listed and CSA Certified for 600 volts, 90˚ C
Dual rated
Cold temperature rated to -45˚ C
High dielectric strength plastisol
Black cover
Removable plugs
Prefilled with De-ox®
