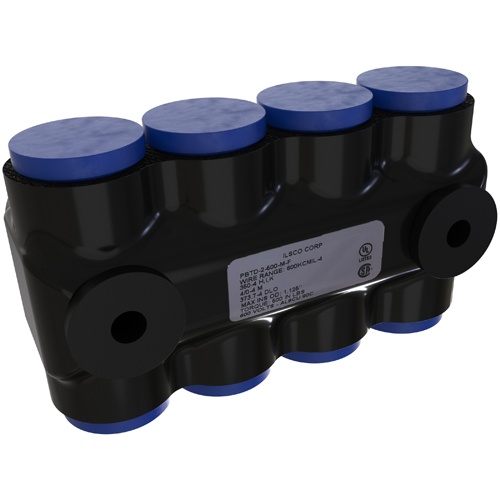

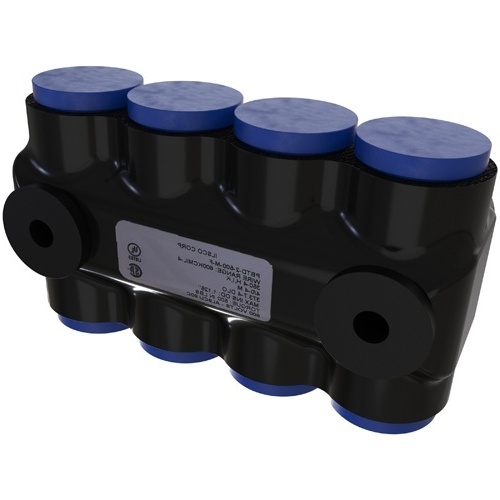

Ilsco PBTD-2-500-M-F Multi-Tap Connector - Aluminum, 600-4 AWG, Stranded, 600 V, 475 Amp, Black
Normally In Stock
Code: 590941
Ilsco PBTD-2-500-M-F - Nimbus4Flex Insulated Flexible Aluminum Multi-Tap Connector, Conductor Range 600-4, Flex 350-4 H,I,K 4/0-4 M 373.7-4 DLO, 2 Ports, Dual Sided Entry, Mountable, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$434.89
Sale Price
$334.53
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco PBTD-2-500-M-F - Nimbus4Flex Insulated Flexible Aluminum Multi-Tap Connector accommodates conductor ranges 600-4 and Flex 350-4, featuring 2 ports, dual sided entry, and mountable design. Rated for 600V voltage, UL and CSA listed, with Plastisol insulation and Tin-plated finish. With DE-OX® technology and environmental rating of up to -45°C. Amperage ratings of 475A for CU and 385A for AL.
Specifications
Color
Black
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
600 V
Number of Connectors
2
Component
Multi-Tap Connector
Insulation Material
Plastisol
Terminal for Wire Gauge
600-4 AWG
Features
Broad wire range: 750kcmil-14
UL Listed and CSA Certified for 600 volts, 90˚ C
Dual rated
Cold temperature rated to -45˚ C
High dielectric strength plastisol
Black cover
Removable plugs
Prefilled with De-ox®
