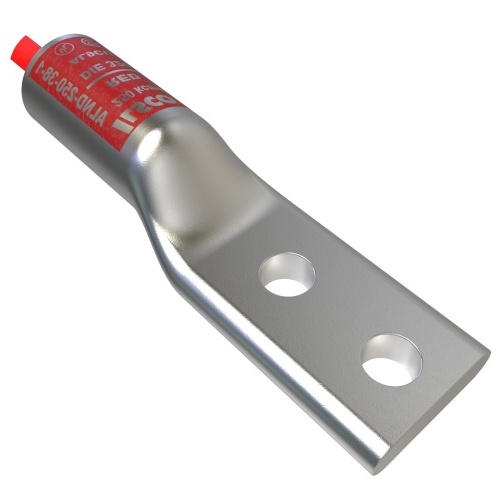

Ilsco ALND-250-38-1 Compression Lug - Aluminum, 250 MCM, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 590302
Ilsco ALND-250-38-1 - Surecrimp Aluminum Compression Lug, Conductor Size 250, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$43.67
Sale Price
$33.59
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco ALND-250-38-1 - Surecrimp Aluminum Compression Lug for 250 kcmil stranded aluminum conductors. 2-hole design with 3/8in bolt size and 1in hole spacing. Tin plated, long barrel with no sight window. Dual rated UL and CSA for 35kV. Color: Silver. DE-OX® technology. UL Control Number: 453G. Connector finish: Tin. Mounting hole type: Thru.(Ilsco Code: S-588-3)
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
250 MCM
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Two bolt hole pattern
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚ C
