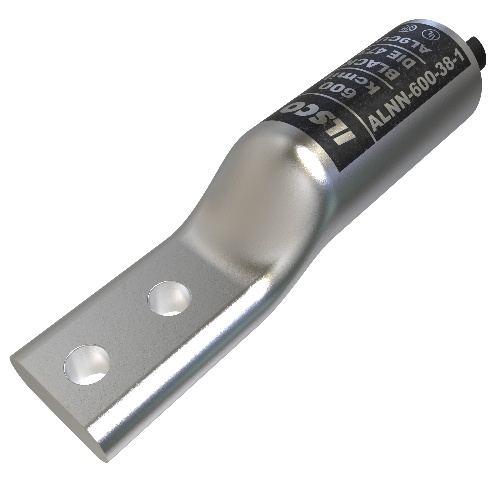

Ilsco ALNN-600-38-1 Compression Lug - Aluminum, 600 MCM, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 589837
Ilsco ALNN-600-38-1 - Surecrimp Aluminum Compression Lug, Conductor Size 600, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Narrow Tang, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$143.26
Sale Price
$110.20
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco ALNN-600-38-1 - Surecrimp Aluminum Compression Lug, #S-588-3, 600 kcmil conductor size, 2-hole design with 3/8in bolt size. Long barrel, narrow tang, tin plated finish. UL, CSA, NEMA listed. Dual rated for copper and aluminum. 35 kV voltage rating, 90°C temperature rating. Compression connection for secure installation. Contains DE-OX®. Mounting hole spacing: 1in.
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
600 MCM
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Two bolt hole pattern
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Narrow Tang
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚ C
