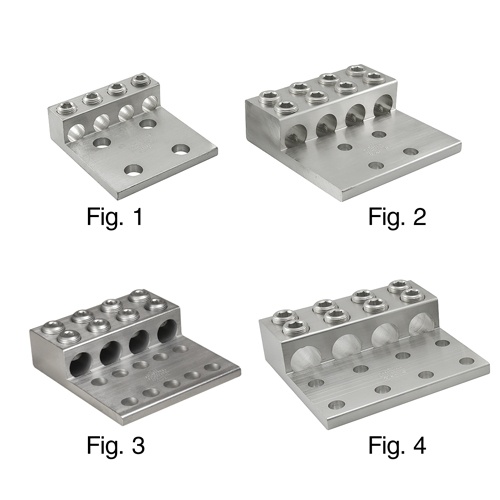

Ilsco T4A4-1000N Mechanical Lug - Aluminum, 1000-350 MCM, Stranded, 35 kV
Normally In Stock
Code: 589775
Ilsco T4A4-1000N - Aluminum Mechanical Lug, Conductor Range 1000-350, 3 Ports, 6 Holes, 1/2in Bolt Size, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$801.77
Sale Price
$616.75
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco T4A4-1000N - Aluminum Mechanical Lug for 1000-350 conductor range, 3 ports, 6 holes, 1/2in bolt size. Tin-plated, UL, CSA listed. Copper conductor, 35kV voltage rating, 90°C temperature rating. Dual-rated, with UL Control Number 453G. Suitable for stranded conductors. Mounting hole spacing 44.45mm. Mounting hole diameter 14.27mm. Dimension G 15.875mm.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
4
Component
Mechanical Lug
Terminal for Wire Gauge
1000-350 MCM
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Must be mounted with a minimum of 4 bolts
Rated to 90˚ C
