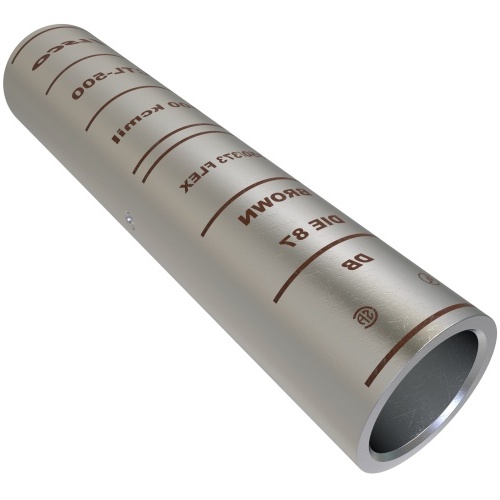

Ilsco CTL-500 Compression Splices - Copper, 500 MCM, Stranded, 35 kV, Silver
Normally In Stock
Code: 589635
Ilsco CTL-500 - Surecrimp Copper Compression Sleeve, Conductor Size 500, Long Barrel, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$56.07
Sale Price
$43.13
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco CTL-500 - Surecrimp Copper Compression Sleeve for conductor size 500 kcmil, long barrel design with tin plated finish. UL, CSA, NEMA Code S-588-1 approved. Suitable for 35 kV voltage rating and direct burial. Copper material with compression connection. Temperature rating of 90°C. Expanded conductor range from 500 kcmil to 250 kcmil.
Specifications
Color
Silver
Manufacturer
Ilsco
Terminal for Wire Gauge
500 MCM
Material
Copper
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
1
Component
Compression Splices
Features
Manufactured from high strength seamless copper tubing
Electro-Tin plated
Chamfered entry
Color coded
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
UL Listed and CSA Certified with ILSCO and major competitor’s compression tools
UL467 Listed 500 kcmil - 8 AWG , #8 - #2 SOL
For direct bury 500 kcmil - 10 grounding and bonding
Rated to 90˚ C
