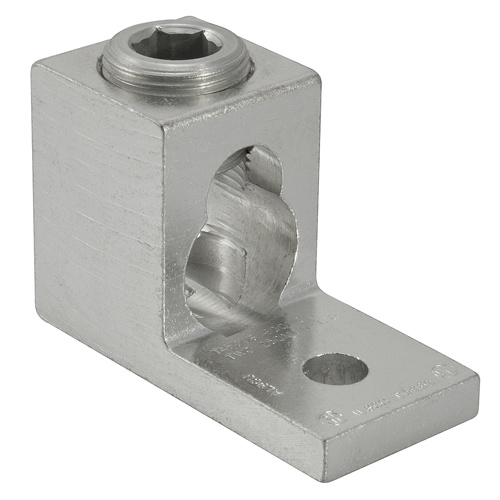

Ilsco TA-500-S Mechanical Lug - Aluminum, 600-4 AWG, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 589540
Ilsco TA-500-S - Aluminum Mechanical Lug, Conductor Range 600-4, 1 Port, 1 Hole, 3/8in Bolt Size, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$32.58
Sale Price
$25.06
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco TA-500-S - Aluminum Mechanical Lug for 600-4 conductor range, 1 port with 3/8in bolt size. Tin plated with UL, CSA, and NEMA Code S-588-3. Dual rated for aluminum and copper conductors. Rated for 35kV and 90°C. Includes one wire binding screw per port and mounting hole diameter of 0.531in. Conductor types include stranded and solid aluminum.
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
1
Component
Mechanical Lug
Terminal for Wire Gauge
600-4 AWG
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
