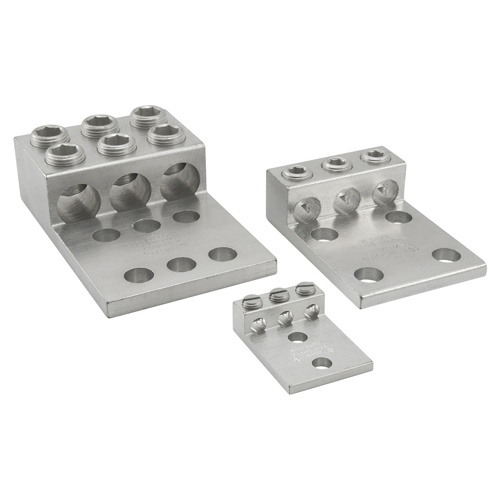

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Ilsco T3A4-0 Mechanical Lug - Aluminum, 1/0-14 AWG, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 589536
Ilsco T3A4-0 - Aluminum Mechanical Lug, Conductor Range 1/0-14, 3 Ports, 4 Holes, 3/8in Bolt Size, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$115.13
Sale Price
$88.56
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco T3A4-0 - Aluminum Mechanical Lug for copper and aluminum conductors ranging from 1/0-14. Features 3 ports with 4 holes, 3/8in bolt size, and tin plating. Dual rated for 35kV, UL, CSA, and NEMA S-588-3 compliant. Suitable for stranded and solid conductors. Temperature rating of 90°C and UL 486A/B listed.
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
3
Component
Mechanical Lug
Terminal for Wire Gauge
1/0-14 AWG
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation t echniques must be used
Must be mounted with a minimum of 2 bolts
Rated to 90˚ C
