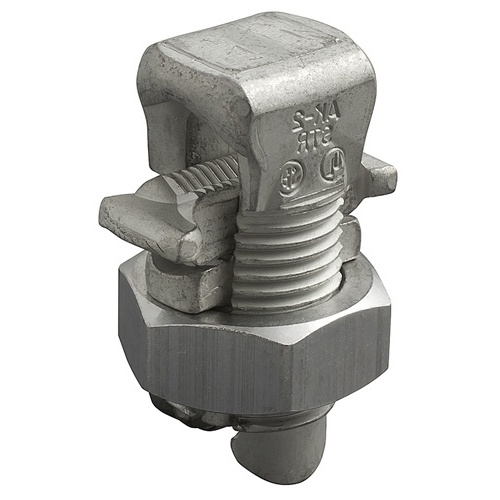

Ilsco AK-1/0 Split Bolt - Aluminum, 1/0-2 AWG, Stranded, 35 kV, Silver
Normally In Stock
Code: 589401
Ilsco AK-1/0 - Aluminum Split Bolt, Main Range 1/0-2, Tap Range 1/0-8, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$24.41
Sale Price
$18.78
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco AK-1/0 - Aluminum Split Bolt for main range 1/0-2 and tap range 1/0-8. Tin plated, UL and CSA listed with NEMA Code S-588-4. Dual rated for aluminum conductors up to 35 kV. Suitable for stranded and solid wires. One-port design with external hex drive for easy installation. Suitable for 90°C temperature rating.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Component
Split Bolt
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
1
Terminal for Wire Gauge
1/0-2 AWG
Features
Manufactured from heat treated aluminum alloy
Triangular edges
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Electro-tin plated
Spacer bar
Hex Head
Rated to 90˚ C
