Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 589384

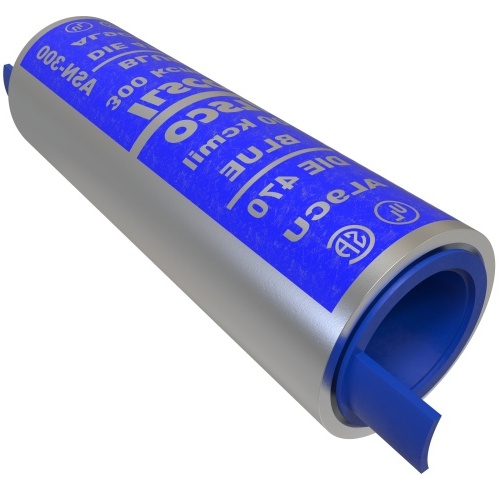

Ilsco ASN-300 Compression Splices - Aluminum, 300 MCM, Stranded, 35 kV, Silver
Normally In Stock
Ilsco ASN-300 - Surecrimp Aluminum Compression Sleeve, Conductor Size 300, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$47.65
Sale Price
$36.65
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco ASN-300 - Surecrimp Aluminum Compression Sleeve, 300 kcmil, Tin Plated, UL listed, CSA certified. Suitable for 35kV, 90°C applications. Designed for 1 conductor, aluminum stranded or solid. Features DE-OX® for superior conductivity. Color-coded, with 180° angle. Outside Diameter: 1.01" (25.654mm), Inside Diameter: 0.65" (16.51mm). Compliant with UL 486A/B and CSA standards.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
300 MCM
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
1
Component
Compression Splices
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚ C
