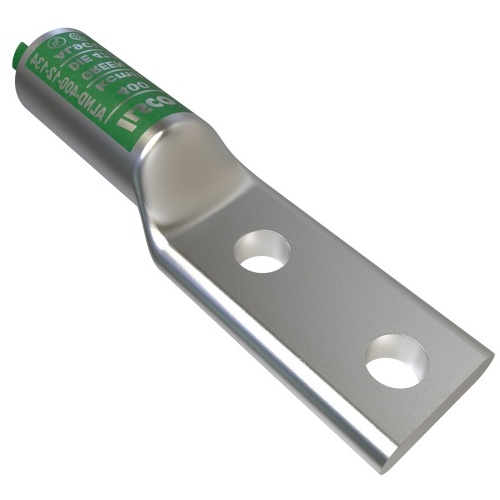

Ilsco ALND-400-12-134 Compression Lug - Aluminum, 400 MCM, Stranded, 35 kV
Normally In Stock
Code: 589377
Ilsco ALND-400-12-134 - Surecrimp Aluminum Compression Lug, Conductor Size 400, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$108.45
Sale Price
$83.42
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco ALND-400-12-134 - Surecrimp Aluminum Compression Lug, 400 kcmil, 2-hole design with 1/2in bolt size and 1-3/4in hole spacing. Long barrel, tin-plated for durability. UL, CSA, NEMA S-588-3 rated. Dual-rated for aluminum and copper conductors. 35 kV voltage rating, 90°C temperature rating. Includes DE-OX® and meets UL 486A/B Listed standards.icolor: Silver.
Specifications
Color
Silver
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Terminal for Wire Gauge
400 MCM
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Two bolt hole pattern
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚ C
