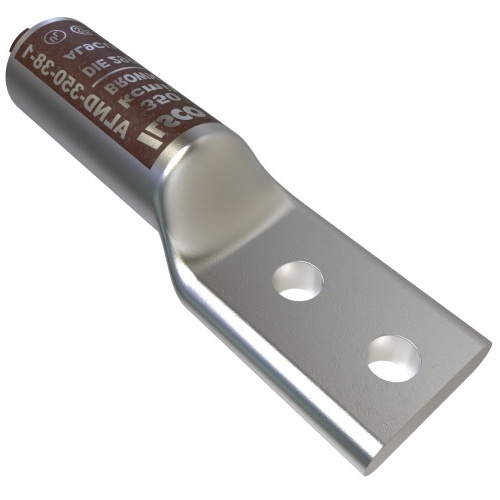

Ilsco ALND-350-38-1 Compression Lug - Aluminum, 350 MCM, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 589375
Ilsco ALND-350-38-1 - Surecrimp Aluminum Compression Lug, Conductor Size 350, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$62.17
Sale Price
$47.82
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco ALND-350-38-1 - The Surecrimp Aluminum Compression Lug is a long-barrel connector suitable for 350kcmil stranded aluminum conductors. Dual-rated for 35kV applications, this lug features a 3/8in bolt size with 2 mounting holes spaced 1in apart. Tin-plated for corrosion resistance, it meets UL, CSA, and NEMA standards. Ideal for compression connections.
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
350 MCM
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Two bolt hole pattern
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚ C
