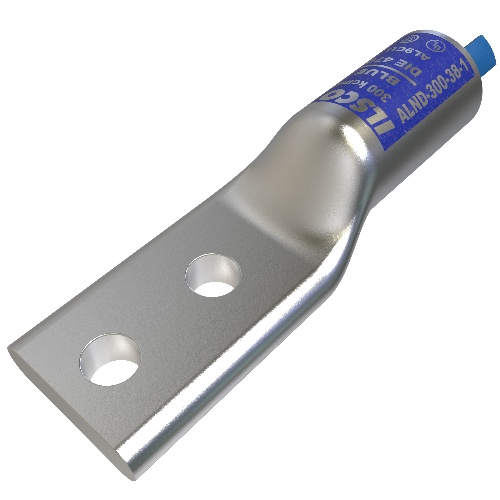

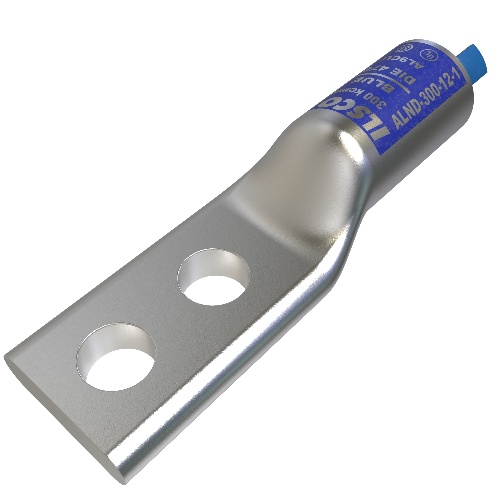

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

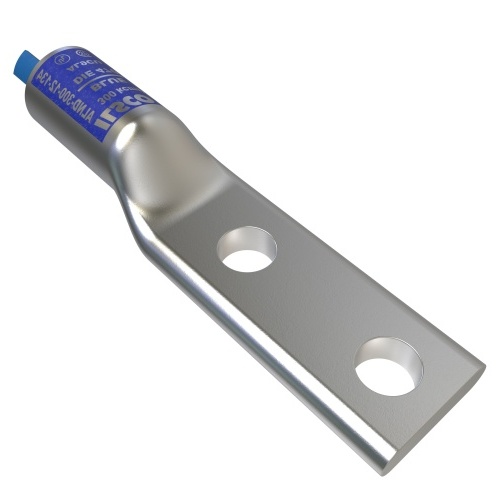

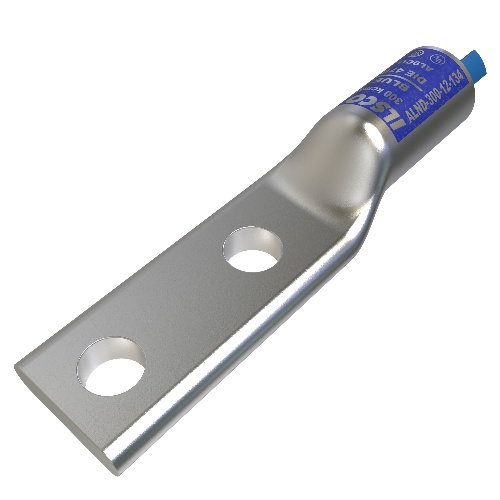

Ilsco ALND-300-12-134 Compression Lug - Aluminum, 300 MCM, Stranded, 35 kV
Normally In Stock
Code: 589373
Ilsco ALND-300-12-134 - Surecrimp Aluminum Compression Lug, Conductor Size 300, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$76.48
Sale Price
$58.83
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco ALND-300-12-134 - The Surecrimp Aluminum Compression Lug S-588-3 is a UL and CSA listed connector for 300 kcmil aluminum conductors. With a 1/2in bolt size, 1-3/4in hole spacing, and tin plating finish, this long barrel lug is suitable for 35kV applications. Dual-rated, it features 2 holes and DE-OX® material.
Specifications
Color
Silver
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Terminal for Wire Gauge
300 MCM
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Two bolt hole pattern
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚ C
